Same model may have multiple batches, images only for reference.

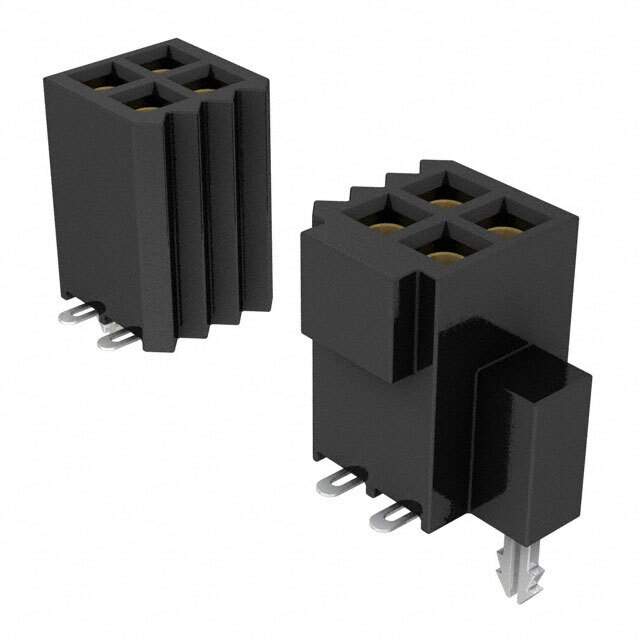

SFM-145-L2-S-D-LC Real Image
Same model may have multiple batches, images only for reference.

SFM-145-L2-S-D-LC

Part No SFM-145-L2-S-D-LC
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFM-145-L2-S-D-LC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFM
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 90
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.185" (4.70mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Mated Stacking Heights 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Features Board Lock
Current Rating (Amps) 3.2A per Contact
Voltage Rating 250VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Beryllium Copper
Base Product Number SFM-145
Other Names SFM-145-L2-S-D-LC,SAM12836
Standard Package 9
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1287137-SFM-145-L2-S-D-LC
Ultra Librarian 3D Model Ultra Librarian SFM-145-L2-S-D-LC CAD Model

Description

The Samtec Inc. Tiger Eye™ SFM 1287137-SFM-145-L2-S-D-LC is a 90 position board to board or cable receptacle connector with a pitch of 0.050" (1.27mm).

  • Positions: 90
  • Type: Board to Board or Cable
  • Pitch: 0.050" (1.27mm)
  • Board Lock: Yes
  • Temperature Range: -55°C to 125°C
  • Fastening Type: Push-Pull
  • Termination: Solder
  • Voltage Rating: 250VAC
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Contact Finish - Mating: Gold
  • Contact Finish - Post: Tin
  • Current Rating: 3
  • REACH: Unaffected
  • ECCN: EAR99
  • Package: Tube
  • Standard Package: 9
  • Popularity: Low
  • Supply and Demand: Balanced
