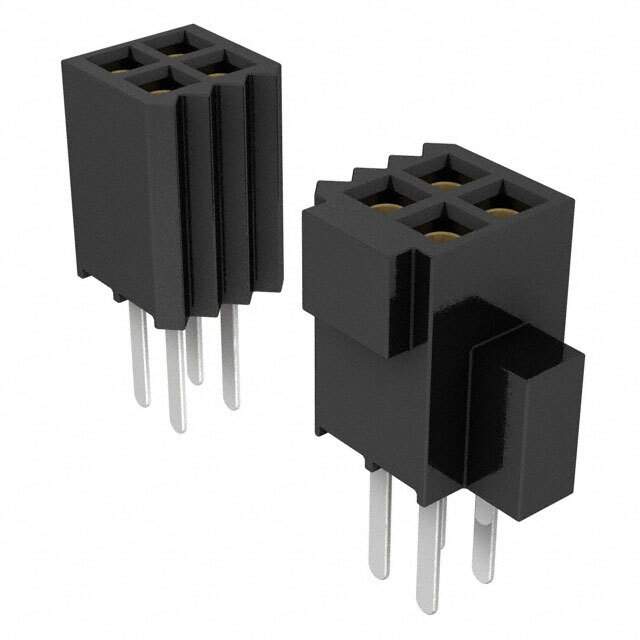

The Samtec Inc. connector is a high-quality electronic component that is perfect for use in various applications.

• Win Source Part Number: 1287139-SFM-145-L3-S-D
• Category: Connectors and Interconnects
• Positions: 90
• Connector Type: Receptacle
• Contact Type: Female Socket
• Positions Loaded: All
• Rows: Two
• Termination: Solder
• Fastening Type: Push-Pull
• Voltage Rating: 250VAC
• Pitch for Mating: 0.050" (1.27mm)
• Contact Finish for Mating: Gold with a thickness of 30.0µin (0.76µm)
• Contact Finish for Post: Tin
• Insulation Color: Black
• Mounting Type: Through Hole
• Row Spacing for Mating: 0.050" (1.27mm)
• Contact Length for Post: 0.075" (1.91mm)
• Insulation Height: 0.180" (4.57mm)
• Contact Shape: Square
• Temperature Range for Operating: -55°C ~ 125°C
