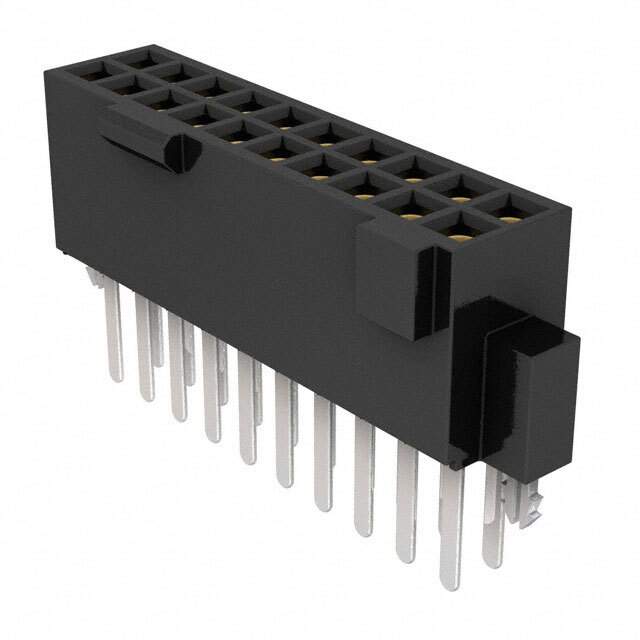

SFML-110-01-L-D-LC Real Image
Same model may have multiple batches, images only for reference.

SFML-110-01-L-D-LC

Part No SFML-110-01-L-D-LC
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFML-110-01-L-D-LC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFML
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.180" (4.57mm)
Contact Length - Post 0.120" (3.05mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Board Lock
Current Rating (Amps) 3.2A per Contact
Voltage Rating 250VAC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Base Product Number SFML-110
Other Names SAM11752,SFML-110-01-L-D-LC
Standard Package 35
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285418-SFML-110-01-L-D-LC
Ultra Librarian 3D Model Ultra Librarian SFML-110-01-L-D-LC CAD Model

Description

The Tiger Eye SFML series is a board-to-board or cable connector type that features a receptacle connector with a locking ramp fastening type.

  • Positions Loaded: 20
  • Rows: Two
  • Termination: Solder
  • Contact Material: Female Socket
  • Contact Shape: Square
  • Pitch-Mating: 0.050 inches (1.27 mm)
  • Insulation Height: 0.180 inches (4.57 mm)
  • Voltage Rating: 250VAC
  • Current Rating: 3.2A per contact
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Material Flammability Rating: UL94 V-0
  • Operating Temperature Range: from -55°C to 125°C
  • Package: Tube
  • Standard Package: 35
