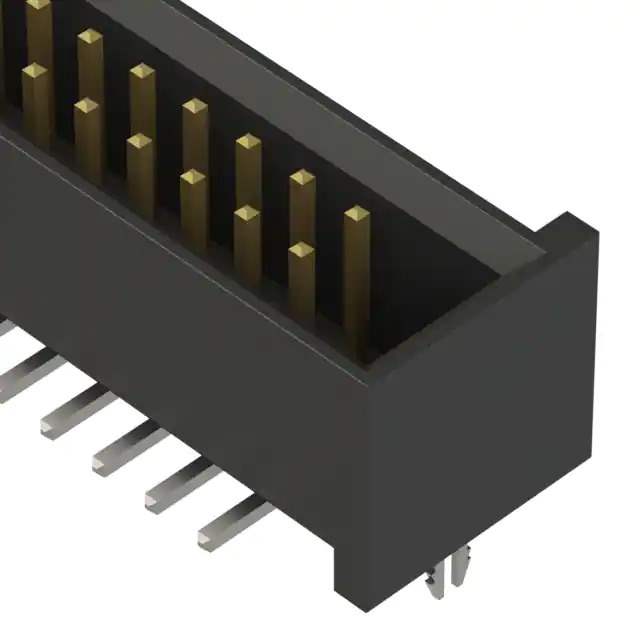

SHF-110-01-L-D-SM-LC-K-TR

Name: SHF-110-01-L-D-SM-LC-K-TR
Brand: Samtec Inc.
SKU: 933379
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SHF-110-01-L-D-SM-LC-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 20POS 1.27MM / Connector Header Surface Mount 20 position 0.050" (1.27mm)
Datasheet	SHF-110-01-L-D-SM-LC-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	SHF
Package	Tape & Reel
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.210" (5.33mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Lock, Keying Slot, Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	SHF-110
Standard Package	350 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	933379-SHF-110-01-L-D-SM-LC-K-TR
Ultra Librarian 3D Model	Ultra Librarian SHF-110-01-L-D-SM-LC-K-TR CAD Model

Alternative Products

Description

The 933379-SHF-110-01-L-D-SM-LC-K-TR is a header connector from Samtec Inc.

Series: SHF
Positions: 20
Contact Type: Male pin
Features: Board lock, keying slot, pick and place
Termination: Surface mount
Pitch: 0.050" (1.27mm)
Mating Contact Finish: Gold, 10.0µin (0.25µm)
Post Finish: Tin
Insulation Material: Black liquid crystal polymer (LCP), UL94 V-0
Shrouded: 4 walls
Row Spacing: 0.050" (1.27mm)
Temperature Range: -55°C to 125°C
Current Rating: 3A
Package: Tape & reel
Pieces per Package: 350
