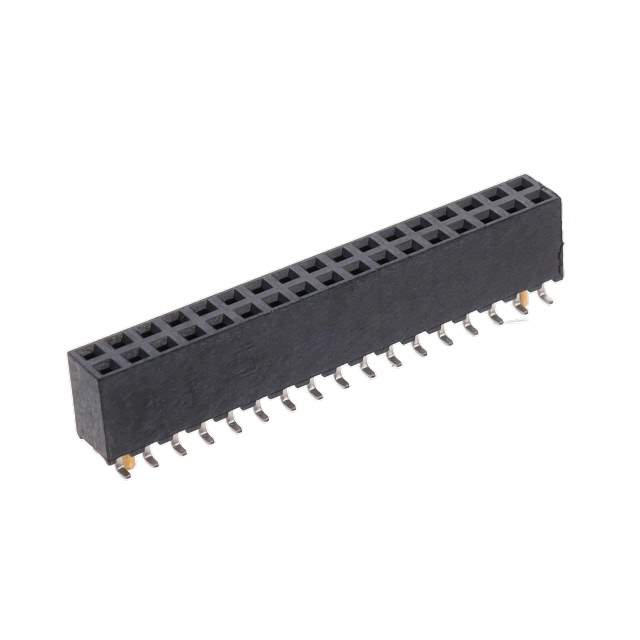

SQW-117-01-F-D-VS-A

Name: SQW-117-01-F-D-VS-A
Brand: Samtec Inc.
SKU: 812042
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SQW-117-01-F-D-VS-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 34POS 0.079 GOLD SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Packaging	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	34
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Mounting Style	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00μin (0.076μm)
Insulation Color	Black
Insulation Height	0.300" (7.62mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Features	Board Guide
Current Rating (Amps)	3.8A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Manufacturer Pack Quantity	1
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	812045-SQW-117-01-F-D-VS-A
Ultra Librarian 3D Model	Ultra Librarian SQW-117-01-F-D-VS-A CAD Model

Alternative Products

Description

The SQW-117-01-F-D-VS-A is a rectangular connector manufactured by Samtec Inc..

Connector Type: Receptacle
Contact Type: Forked
Pitch: 0.079 inches
Positions: 34
Temperature Range: -55°C to 125°C
Insulation Material: Liquid Crystal Polymer (LCP)
Mounting Type: Surface Mount
Current Rating: 3.8A per contact
Contact Finish Thickness: 3.00µin (0.076µm)
Contact Finish: Gold
