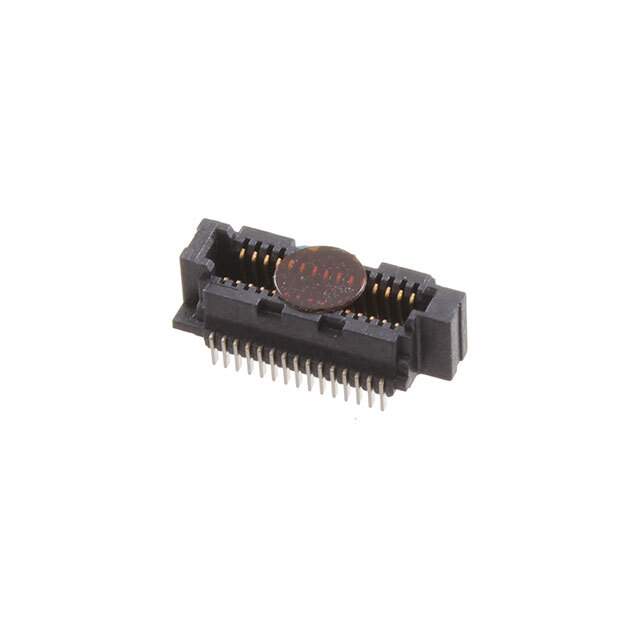

SS5-15-3.50-L-D-K-TR

Name: SS5-15-3.50-L-D-K-TR
Brand: Samtec Inc.
SKU: 1096132
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SS5-15-3.50-L-D-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	0.50 MM RAZOR BEAM LP SLIM SOCK / 30 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Razor Beam™ SS5
Package	Tape & Reel (TR),Cut Tape (CT)
Connector Type	Socket, Outer Shroud Contacts
Number of Positions	30
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	4.5mm, 5.5mm, 6mm
Height Above Board	0.132" (3.35mm)
Base Product Number	SS5-15
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SS5-15-3.50-L-D-K-TR-ND,612-SS5-15-3.50-L-D-K-TR,612-SS5-15-3.50-L-D-K-CT
Standard Package	1,075
Win Source Part Number	1096132-SS5-15-3.50-L-D-K-TR
Ultra Librarian 3D Model	Ultra Librarian SS5-15-3.50-L-D-K-TR CAD Model

Alternative Products

Description

The SS5-15-3.50-L-D-K-TR is a Razor Beam™ SS5 series connector with 30 positions and an outer shroud socket contact.

Series: Razor Beam™ SS5
Positions: 30
Contact Type: Outer Shroud Socket
Pitch: 0.020" (0.50mm)
Mounting Type: SMD (SMT)
Contact Finish: Gold
Contact Finish Thickness: 10.0μin (0.25μm)
Package: Tape & Reel (TR), Cut Tape (CT)
Standard Package: 1,075
Mated Stacking Heights: 4.5mm, 5.5mm, and 6mm
Height Above Board: 0.132" (3.35mm)
Application: Board-to-Board
