Same model may have multiple batches, images only for reference.

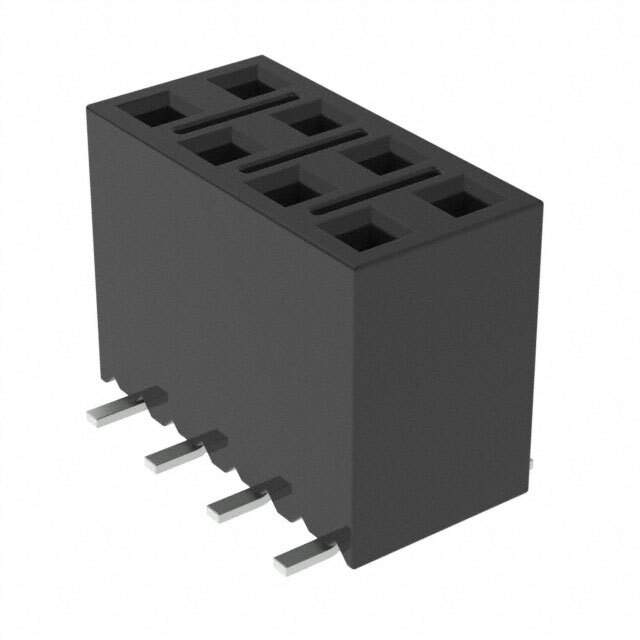

SSM-104-T-DV Real Image
Same model may have multiple batches, images only for reference.

SSM-104-T-DV

Part No SSM-104-T-DV
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSM-104-T-DV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSM
Package Tube
Connector Type Receptacle, Pass Through
Contact Type Female Socket
Style Board to Board or Cable
Number of Positions 8
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Black
Insulation Height 0.290" (7.37mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Tin
Current Rating (Amps) 5.2A per Contact
Voltage Rating 405VAC, 572VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number SSM-104
Other Names SSM-104-T-DV,SAM11892
Standard Package 56
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1291789-SSM-104-T-DV
Ultra Librarian 3D Model Ultra Librarian SSM-104-T-DV CAD Model

Description

The SSM-104-T-DV is a rectangular connector manufactured by Samtec Inc.

  • Series: SSM
  • Positions: 8
  • Contact Type: Female socket
  • Connector Type: Receptacle, pass through
