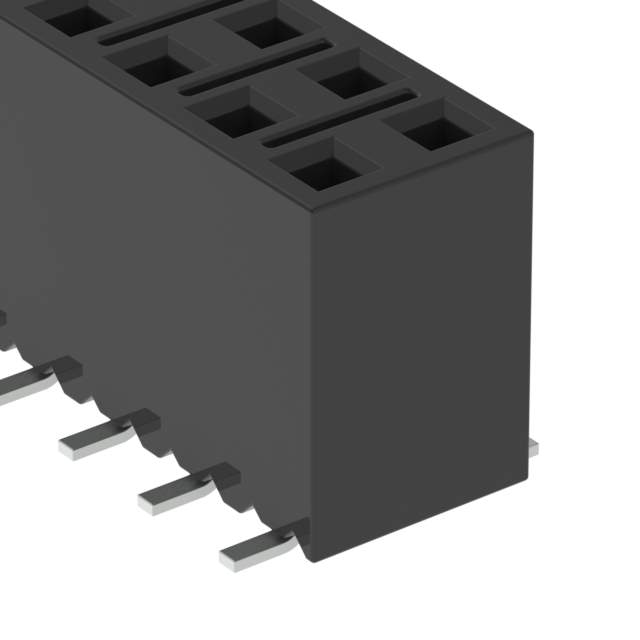

Same model may have multiple batches, images only for reference.

SSM-106-L-DV-LC

Name: SSM-106-L-DV-LC
Brand: Samtec Inc.
SKU: 1291794
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SSM-106-L-DV-LC
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSM-106-L-DV-LC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSM
Package	Tube
Connector Type	Receptacle, Pass Through
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	12
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.290" (7.37mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Features	Board Lock
Current Rating (Amps)	5.2A per Contact
Voltage Rating	405VAC, 572VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSM-106
Standard Package	37
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1291794-SSM-106-L-DV-LC
Ultra Librarian 3D Model	Ultra Librarian SSM-106-L-DV-LC CAD Model

Alternative Products

Description

The Samtec SSM series is a range of 12-position rectangular connectors that feature a board lock and a female socket contact type.

Pitch: 0.100 inches
Contact Finish Thickness: 10.0μin
Insulation Material: Liquid crystal polymer (LCP)
Temperature Range: -55°C to 125°C
Current Rating: 5.2A per contact
Application: Board-to-board or cable applications
