Same model may have multiple batches, images only for reference.

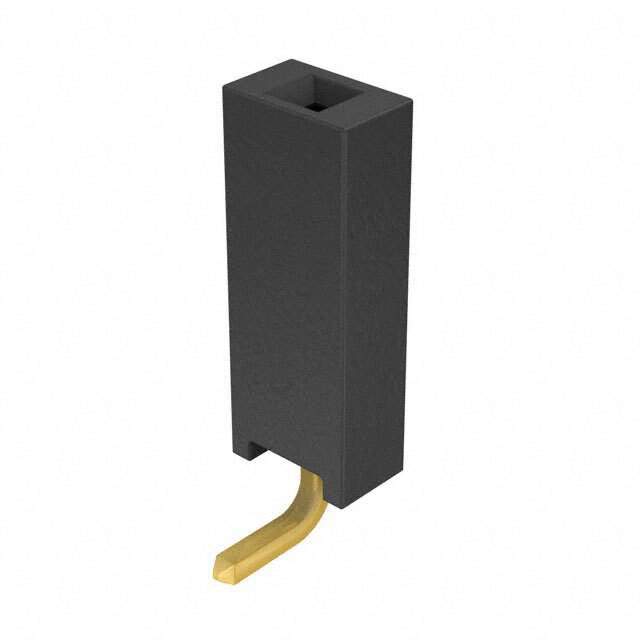

SSQ-101-02-G-S-RA Real Image
Same model may have multiple batches, images only for reference.

SSQ-101-02-G-S-RA

Part No SSQ-101-02-G-S-RA
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SSQ-101-02-G-S-RA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SSQ
Package Bulk
Connector Type Receptacle
Contact Type Forked
Style Board to Board or Cable
Number of Positions 1
Number of Positions Loaded All
Number of Rows 1
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Insulation Color Black
Insulation Height 0.095" (2.41mm)
Contact Length - Post 0.100" (2.54mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Voltage Rating 465VAC, 655VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number SSQ-101
Other Names SAM1188-01
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1288926-SSQ-101-02-G-S-RA
Ultra Librarian 3D Model Ultra Librarian SSQ-101-02-G-S-RA CAD Model

Description

This rectangular connector is a female socket that belongs to the SSQ series.

  • Win Source Part Number: 1288926-SSQ-101-02-G-S-RA
  • Positions: One
  • Positions Loaded: All
  • Pitch-Mating: -
  • Row Spacing-Mating: -
  • Contact Finish-Mating: Gold
  • Contact Finish-Mating Thickness: 20.0μin (0.51μm)
  • Contact Finish-Post: Gold
  • Contact Finish-Post Thickness: 3.00μin (0.076μm)
  • Voltage Rating: 465VAC, 655VDC
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Mounting Type: Through Hole, Right Angle
  • Contact Shape: Square
  • Temperature Range: -55°C to 125°C
