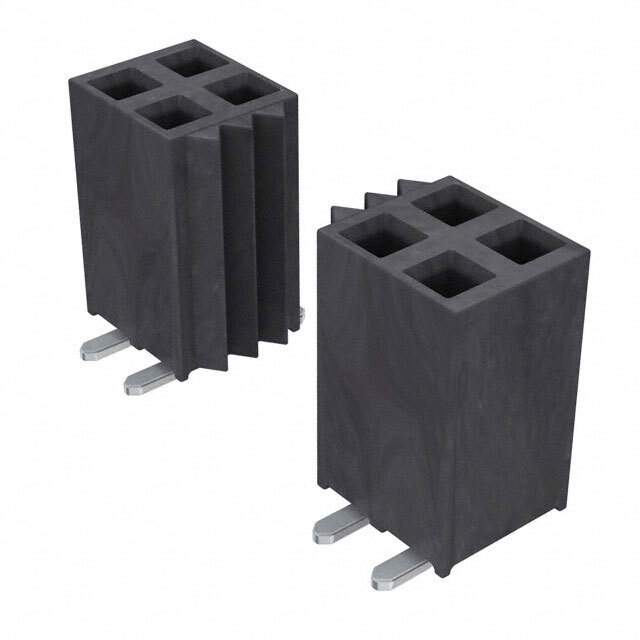

Same model may have multiple batches, images only for reference.

SSW-110-22-F-D-VS

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SSW-110-22-F-D-VS
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SSW-110-22-F-D-VS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SSW
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board or Cable
Number of Positions	20
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	4.7A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	SSW-110
Other Names	Q4198370,SSW-1-10-22-F-D-VS,SSW-110-22-F-D-VS,SSW-1-10-22-F-D-VS,SAM12912
Standard Package	21
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1288022-SSW-110-22-F-D-VS
Ultra Librarian 3D Model	Ultra Librarian SSW-110-22-F-D-VS CAD Model

Alternative Products

Description

This rectangular connector is a receptacle type connector with a forked contact type.

Positions: 20
Rows: Two
Fastening Type: Push-pull
Termination Type: Solder
Mounting: SMD (SMT)
Contact Material: Phosphor bronze
Contact Plating (Mating): Gold
Contact Plating (Post): Tin
Insulation Material: Liquid crystal polymer (LCP)
Color: Black
Insulation Height: 0.335 inches
Contact Shape: Square
Operating Temperature Range: -55°C to 125°C
Current Rating: 4.7A per contact
REACH: Unaffected
Packaging: Tube
Standard Package: 21
