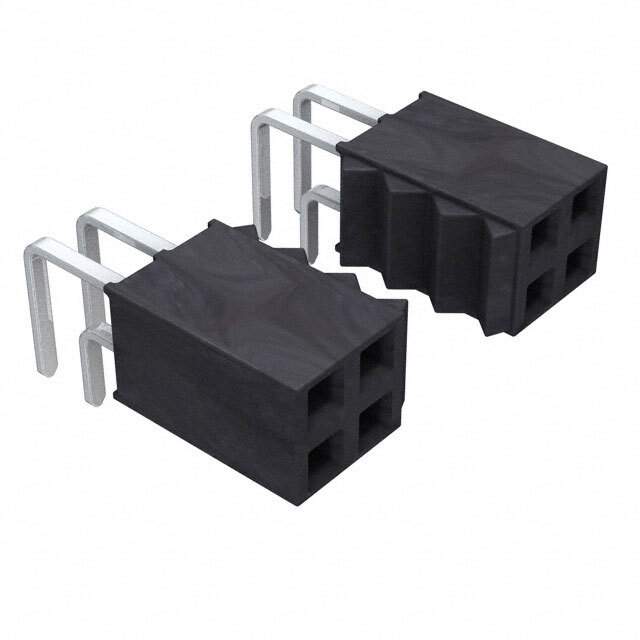

The SSW-111-02-S-D-RA is a Samtec Inc. socket strip connector from the SSW series, known for its versatile board-to-board connectivity solutions. This particular model features a right-angle orientation, making it suitable for applications where vertical stacking or perpendicular board connections are required. The connector is designed for through-hole mounting, ensuring a secure and reliable connection to the PCB.

Applications

• Right-Angle Board Connections: Used to connect PCBs at a 90-degree angle, optimizing space utilization within electronic devices.
• Vertical Board Stacking: Enables the vertical stacking of PCBs in compact electronic systems.
• Signal Routing: Used for routing signals efficiently in tight spaces.
• Prototyping: Suitable for prototyping circuits and testing designs with space constraints.
• Industrial Equipment: Integrated into industrial equipment requiring robust and space-saving board connections.

Features

• Number of Positions: 22 (11 per row, double row).
• Pitch: 0.100" (2.54 mm) standard spacing for compatibility with common PCB layouts.
• Mounting Type: Through-hole mounting provides a strong mechanical connection to the PCB.
• Row Spacing: 0.100" (2.54 mm) standard row spacing simplifies integration.
• Body Orientation: Right-angle, allowing for perpendicular board connections.
• Insulator Material: Black Liquid Crystal Polymer (LCP), known for its high-temperature resistance and chemical stability.
• Contact Material: Phosphor Bronze for good conductivity and durability.
• Plating: Gold plating on contacts ensures reliable electrical performance and corrosion resistance.

Benefits

• Space-Saving Design: Right-angle orientation allows for efficient use of space within electronic devices.
• Reliable Connection: Gold-plated contacts provide a dependable electrical connection, minimizing signal loss and ensuring long-term stability.
• Robust Construction: LCP insulator and Phosphor Bronze contacts provide excellent durability, ensuring a long service life in demanding applications.
• Easy Installation: Through-hole mounting facilitates easy and secure installation onto the PCB.
• Versatile Application: Suitable for a wide range of applications requiring right-angle board-to-board connections.

The SSW-111-02-S-D-RA socket strip connector from Samtec provides a space-saving and reliable solution for right-angle board-to-board connectivity. Its robust construction, gold-plated contacts, and right-angle orientation make it a suitable choice for applications where space is limited and reliable performance is essential.
