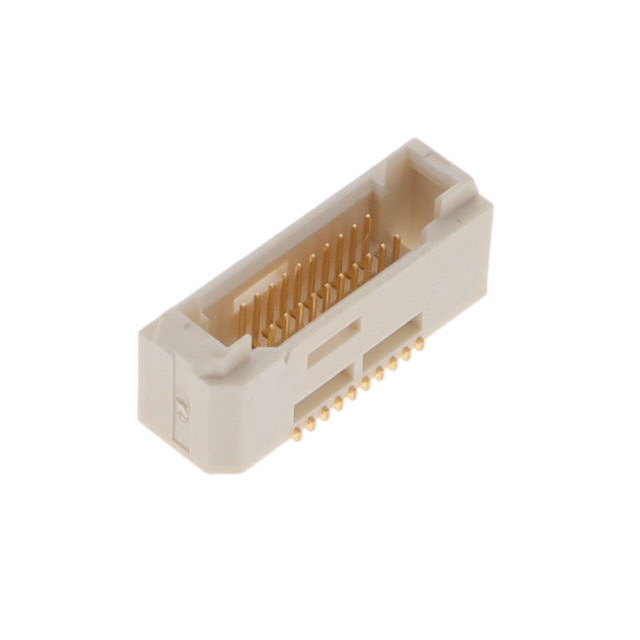

Same model may have multiple batches, images only for reference.
TEM-110-02-03.0-H-D-L1-K-TR Samtec Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

TEM-110-02-03.0-H-D-L1-K-TR

Part No TEM-110-02-03.0-H-D-L1-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors - Headers, Male Pins
Description .8MM TIGER EYE MICRO TERMINAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.031" (0.80mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.063" (1.60mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Latch Lock
Insulation Height 0.220" (5.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Contact Finish - Post Gold
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Pick and Place
Temperature Range - Operating -55°C ~ 125°C
Insulation Color Black
Current Rating (Amps) 2.9A per Contact
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1509506-TEM-110-02-03.0-H-D-L1-K-TR
Ultra Librarian 3D Model Ultra Librarian TEM-110-02-03.0-H-D-L1-K-TR CAD Model
