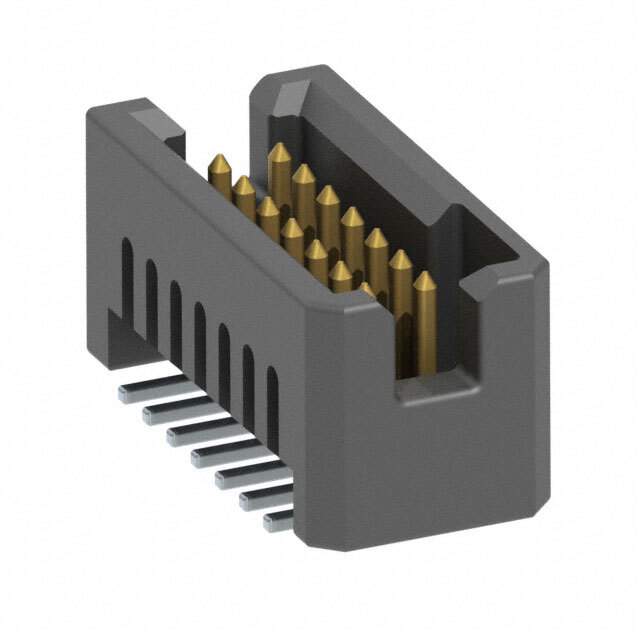

TFM-107-02-L-D-K-TR Real Image
Same model may have multiple batches, images only for reference.

TFM-107-02-L-D-K-TR

Part No TFM-107-02-L-D-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description .050 X .050 MICRO STRIPS / Conn Shrouded Header HDR 14 POS 1.27mm Solder ST Top Entry SMD T/R
Datasheet
TFM-107-02-L-D-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Series Tiger Eye TFM
Packaging Reel package
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Number of Positions 14
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD
Termination Solder
Contact Length - Mating 0.131" (3.33mm)
Insulation Height 0.220" (5.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 15μin (0.38μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Pick and Place
Operating Temperature Range -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating 2.9A per Contact
Voltage Rating 275VAC
Win Source Part Number 796690-TFM-107-02-L-D-K-TR
Popularity Medium
Supply and Demand Status Limited
Family Name TFM
Introduction Date April 22, 2009
ECCN EAR99
Country of Origin China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian TFM-107-02-L-D-K-TR CAD Model

Description

The Samtec Inc. Tiger Eye TFM series is a rectangular connector header with a shrouded-4 wall and a pitch of 0.050" (1.27mm) from Samtec Inc.

  • Positions: 14 (loaded)
  • Rows: 2
  • Contact Material: Phosphor bronze
  • Voltage Rating: 275VAC
  • Current Rating: 2.9A per contact
  • Insulation Material: Liquid crystal polymer (LCP)
  • Connector Type: Header
  • Termination: Solder
  • Mating Contact Finish: Gold
  • Post Contact Finish: Tin
  • Insulation Color: Black
  • Mounting Type: SMD
  • Temperature Range: -55°C ~ 125°C
  • ECCN: EAR99
  • Standard Package: 1 piece
