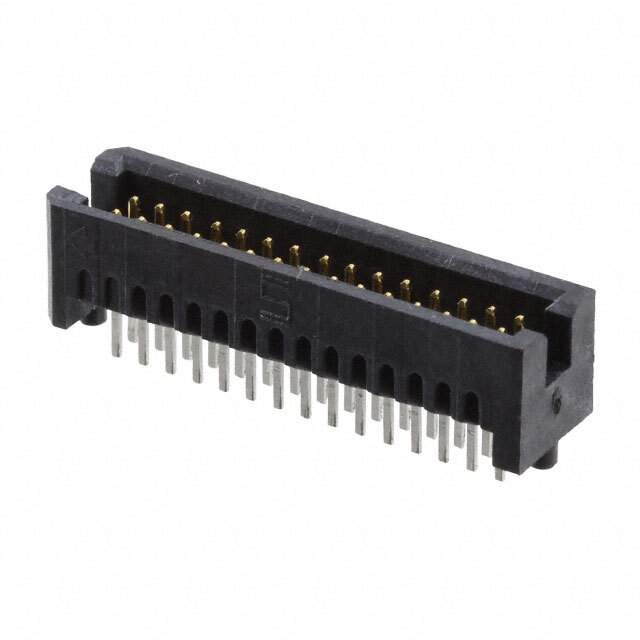

Same model may have multiple batches, images only for reference.

TFM-115-01-S-D-A

Name: TFM-115-01-S-D-A
Brand: Samtec Inc.
SKU: 936415
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TFM-115-01-S-D-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 30POS 1.27MM
Datasheet	TFM-115-01-S-D-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors
Estimated Pruduction Lead Time	8 Weeks
Features	Connector Header Through Hole 30 position 0.050" (1.27mm)
Manufacturer	Samtec Inc.
Series	Tiger Eye™ TFM
Package	Tube
Operating Temperature Range	-55°C ~ 125°C
Mounting	Through Hole
Family Name	TFM-115
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	SAM12073, TFM-115-01-S-D-A-ND
Quantity per package	1
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	936415-TFM-115-01-S-D-A
Ultra Librarian 3D Model	Ultra Librarian TFM-115-01-S-D-A CAD Model

Alternative Products

Description

The Samtec Inc. Tiger Eye™ TFM series connector header is a through-hole component with 30 positions and a pitch of 0.050" (1.27mm).

Mounting: Through-Hole
Positions: 30
Pitch: 0.050" (1.27mm)
Operating Temperature: -55°C to 125°C
Family Name: TFM-115
Package Type: Tube
Alternate Part Number: TFM-115-01-S-D-A-ND
ECCN: EAR99
REACH: Unaffected
MSL: 1
Shelf Life: Unlimited
Estimated Production Lead Time: 8 weeks
