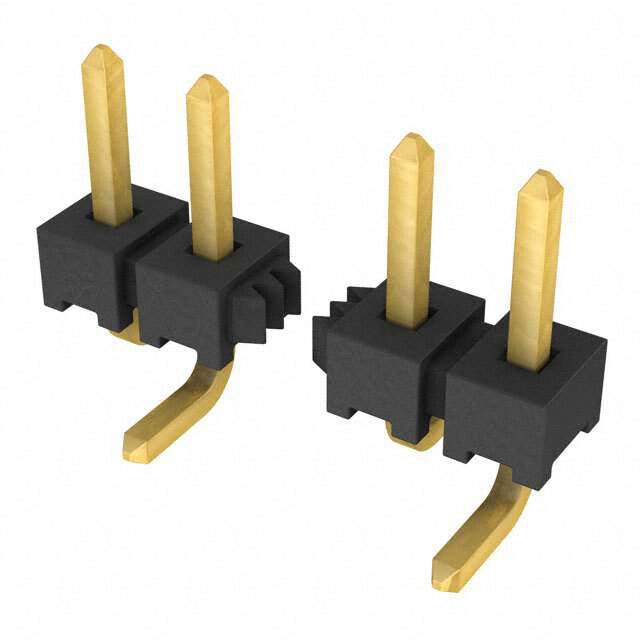

Same model may have multiple batches, images only for reference.

TMM-108-01-G-S-SM-P-TR

Name: TMM-108-01-G-S-SM-P-TR
Brand: Samtec Inc.
SKU: 1100302
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	TMM-108-01-G-S-SM-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	2MM TERMINAL STRIP / Connector Header Surface Mount 8 position 0.079" (2.00mm)
Datasheet	TMM-108-01-G-S-SM-P-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	TMM
Package	Tape & Reel (TR)
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	8
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.126" (3.20mm)
Insulation Height	0.059" (1.50mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20.0µin (0.51µm)
Contact Finish - Post	Gold
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.2A per Contact
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	TMM-108
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	425
Win Source Part Number	1100302-TMM-108-01-G-S-SM-P-TR
Ultra Librarian 3D Model	Ultra Librarian TMM-108-01-G-S-SM-P-TR CAD Model

Alternative Products

Description

The 1100302-TMM-108-01-G-S-SM-P-TR is a male pin header connector manufactured by Samtec Inc.

Series: TMM
Positions: 8
Positions Loaded: all positions loaded
Applications: board-to-board or cable applications
Pitch-mating: 0.079 inches
Contact Finish: gold with a thickness of 20.0µin for mating and 3.00µin for post
Temperature Range: -55°C to 125°C
Mounting: surface mount technology (SMT)
Package: tape and reel
Pieces per package: 425
