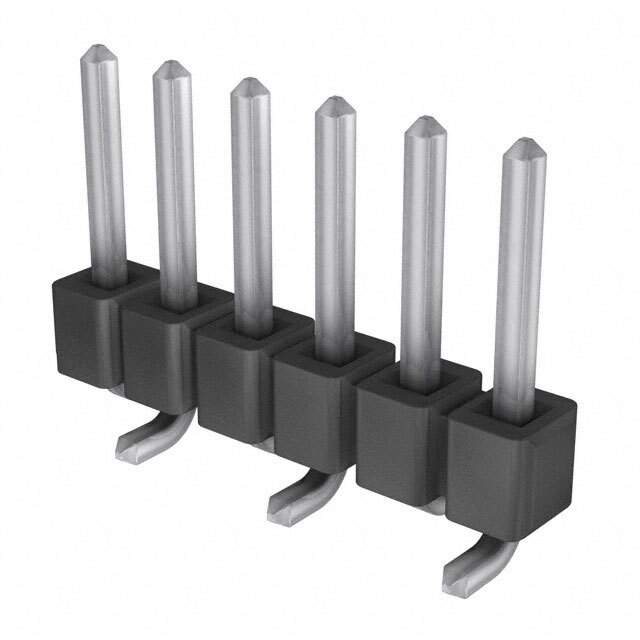

TSM-106-01-T-SV

Name: TSM-106-01-T-SV
Brand: Samtec Inc.
SKU: 798496
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TSM-106-01-T-SV
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER 6POS .100" SNGL SMD / Conn Unshrouded Header HDR 6 POS 2.54mm Solder ST Top Entry SMD Tube
Datasheet	TSM-106-01-T-SV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Series	TSM
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Style	Board to Board or Cable
Shrouding	Unshrouded
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	1
Mounting	SMD
Termination	Solder
Contact Length - Mating	0.230" (5.84mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature Range	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Win Source Part Number	798496-TSM-106-01-T-SV
Popularity	Medium
Supply and Demand Status	Limited
Family Name	TSM
Introduction Date	January 07, 1995
ECCN	EAR99
Country of Origin	China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian TSM-106-01-T-SV CAD Model

Alternative Products

Description

The Samtec Inc. electronic component with Win Source Part Number 798496-TSM-106-01-T-SV is a connector that is part of the TSM series.

Connector Type: Male pin header
Positions: 6 (loaded)
Shrouding: Unshrouded
Contact Material: Phosphor bronze
Insulation Material: Liquid crystal polymer (LCP)
Insulation Color: Black
Pitch Mating: 0.100" (2.54mm)
Contact Finish-Mating: Tin
Contact Finish-Post: Tin
Operating Temperature: -55°C ~ 105°C
Mounting: SMD
Supply and Demand Status: Limited
