Same model may have multiple batches, images only for reference.

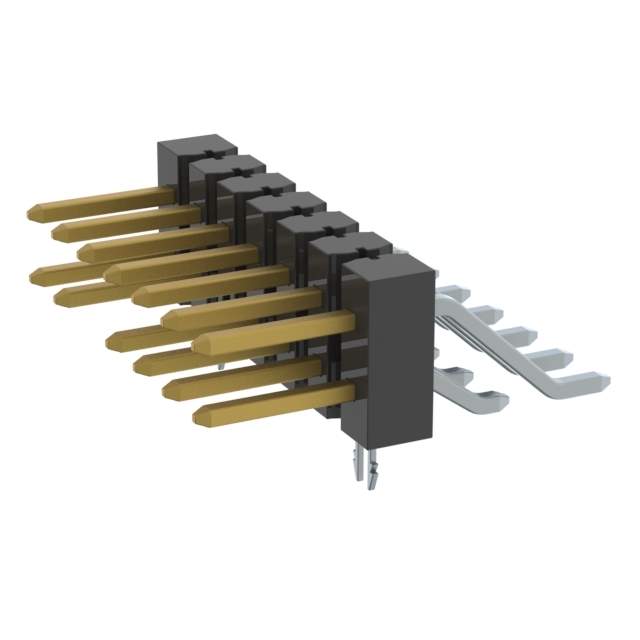

TSM-107-01-LM-DH-LC-009-TR Real Image
Same model may have multiple batches, images only for reference.

TSM-107-01-LM-DH-LC-009-TR

Part No TSM-107-01-LM-DH-LC-009-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 14POS 2.54MM / Connector Header Surface Mount, Right Angle 14 position 0.100" (2.54mm)
Datasheet
TSM-107-01-LM-DH-LC-009-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series TSM
Package Tape & Reel (TR)
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 14
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded 13
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.230" (5.84mm)
Insulation Height 0.240" (6.10mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Lock
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number TSM-107
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 275
Win Source Part Number 1050526-TSM-107-01-LM-DH-LC-009-TR
Ultra Librarian 3D Model Ultra Librarian TSM-107-01-LM-DH-LC-009-TR CAD Model

Description

The TSM series header from Samtec Inc. is a 14-position header with a male pin contact type.

  • Applications: It is designed for board-to-board or cable applications and has a pitch-mating of 0.100 inches.
  • Insulation Material: The connector is made of liquid crystal polymer (LCP) insulation material and features a black insulation color.
  • Contact Finish-Mating: The contact finish-mating is gold with a thickness of 10.0µin (0.25µm)
  • Contact Finish-Post: while the contact finish-post is tin.
  • Mounting Type: The connector has a surface mount, right-angle mounting type, and an unshrouded shrouding.
  • Row Spacing-Mating: It has a row spacing-mating of 0.100 inches
  • Contact Length-Post: contact length-post of 0.230 inches
  • Insulation Height: and an insulation height of 0.240 inches.
  • Temperature Range: The connector has a temperature range of -55°C to 125°C.
