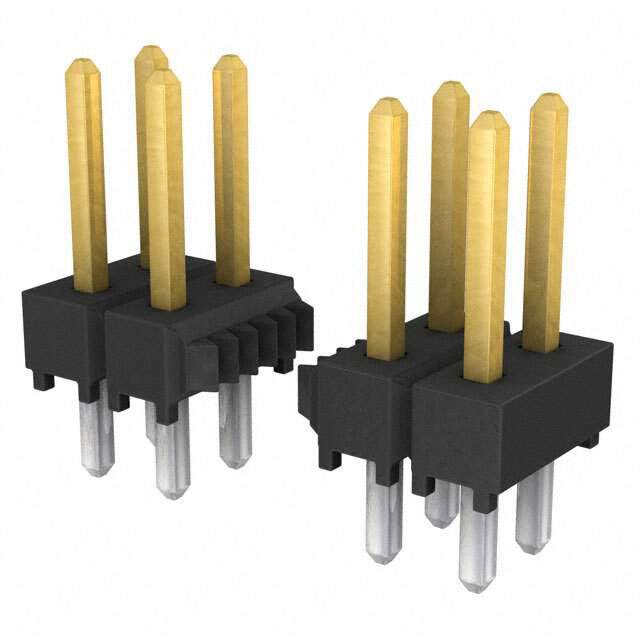

TSW-112-07-L-D Real Image
Same model may have multiple batches, images only for reference.

TSW-112-07-L-D

Part No TSW-112-07-L-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER 24POS .100" DL GOLD / Conn Unshrouded Header HDR 24 POS 2.54mm Solder ST Top Entry Thru-Hole Bag
Datasheet
TSW-112-07-L-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Samtec Inc.
Series TSW
Packaging Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Style Board to Board or Cable
Shrouding Unshrouded
Number of Positions 24
Number of Positions Loaded All
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Style Through Hole
Termination Solder
Contact Length - Mating 0.230" (5.84mm)
Contact Length - Post 0.100" (2.54mm)
Overall Contact Length 0.430" (10.92mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10μin (0.25μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polybutylene Terephthalate (PBT)
Operating Temperature Range -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Win Source Part Number 798518-TSW-112-07-L-D
Popularity Medium
Supply and Demand Status Limited
Family Name HTSW
Introduction Date September 18, 2001
ECCN EAR99
Country of Origin China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian TSW-112-07-L-D CAD Model

Description

The Samtec Inc.'s 736838 is a header connector with 24 positions and a male pin contact type.

  • Shrouding: Unshrouded
  • Contact Loading: All positions
  • Rows: Two
  • Pitch Mating: 0.100" (2.54mm)
  • Mounting: Through-hole
  • Contact Finish-Mating: Gold, 10μin (0.25μm)
  • Contact Finish-Post: Tin
  • Insulation Material: Polybutylene terephthalate (PBT)
  • Flammability Rating: UL94 V-0
  • Operating Temperature: -55°C to 125°C
  • Supply and Demand Status: Limited
