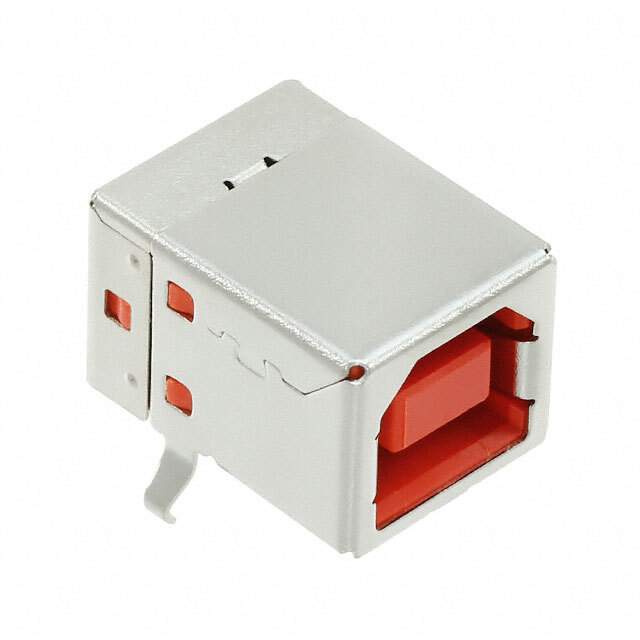

USBR-B-S-F-O-TH Real Image1 USBR-B-S-F-O-TH Real Image2
Same model may have multiple batches, images only for reference.
USBR-B-S-F-O-TH Real Image1 USBR-B-S-F-O-TH Real Image2
USBR-B-S-F-O-TH Real Image1 USBR-B-S-F-O-TH Real Image2
Same model may have multiple batches, images only for reference.

USBR-B-S-F-O-TH

Part No USBR-B-S-F-O-TH
Manufacturer Samtec Inc.
Catalog USB, DVI, HDMI Connectors
Description CONN RCPT USB2.0 TYPEB 4POS R/A / USB-B (USB TYPE-B) USB 2.0 Receptacle Connector 4 Position Through Hole, Right Angle
Datasheet
USBR-B-S-F-O-TH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors>USB, DVI, HDMI Connector Assemblies
Mfr Samtec Inc.
Series USBR
Package Tray
Connector Type USB-B (USB TYPE-B)
Number of Contacts 4
Gender Receptacle
Specifications USB 2.0
Mounting Type Through Hole, Right Angle
Mounting Feature Horizontal
Termination Solder
Features Board Lock
Ingress Protection -
Temperature Range - Operating -50°C ~ 85°C
Number of Ports 1
Current Rating (Amps) -
Voltage - Rated 30VAC
Mating Cycles 1500
Shielding -
Contact Finish Gold
Shell/Shielding Material Phosphor Bronze, Steel
Material Flammability Rating -
Insulation Color Orange
Base Product Number USBR-B
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Standard Package 1 pcs
Win Source Part Number 1383814-USBR-B-S-F-O-TH
Ultra Librarian 3D Model Ultra Librarian USBR-B-S-F-O-TH CAD Model

Description

The USBR-B-S-F-O-TH is a USB-B (USB TYPE-B) connector assembly from the USBR series. It is designed for use in USB, DVI, HDMI connectors and falls under the category of Connectors, Interconnects.

  • Board Lock: Yes
  • Termination: Soldering
  • Contact Finish: Gold
  • Mounting Orientation: Horizontal
  • USB Standard: USB 2.0
  • Number of Contacts: 4
  • Connector Type: Receptacle
  • Voltage Rating: 30VAC
  • Operating Temperature: -50°C to 85°C
  • Manufacturer: Samtec Inc.
  • Mating Cycle: 1500
  • RoHS Compliant: Yes
  • REACH Unaffected: Yes
  • Shell Material: Phosphor Bronze
  • Shielding Material: Steel
