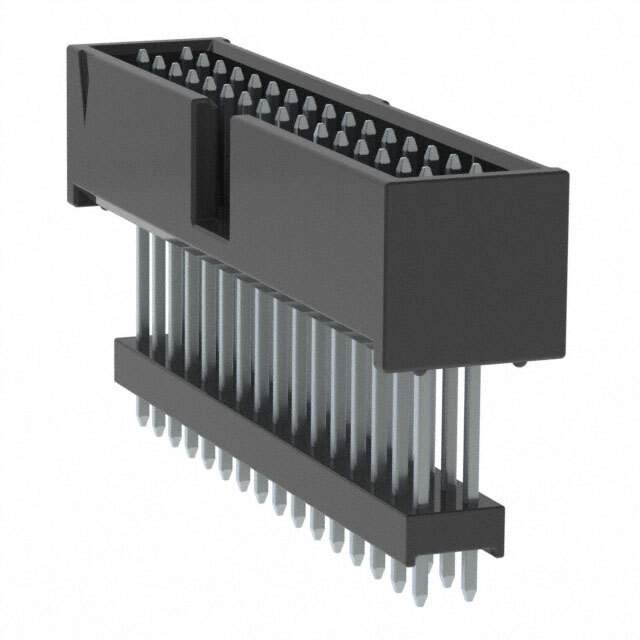

ZSS-116-03-T-D-700

Name: ZSS-116-03-T-D-700
Brand: Samtec Inc.
SKU: 1096327
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	ZSS-116-03-T-D-700
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HDR .100" 32POS / Connector Header Through Hole 32 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Flex Stack, ZSS
Package	Bulk
Connector Type	Header, Elevated
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	32
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.250" (6.35mm)
Contact Length - Post	0.130" (3.30mm)
Overall Contact Length	0.830" (21.08mm)
Insulation Height	0.700" (17.78mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Polyester, Glass Filled
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	ZSS-116
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1
Win Source Part Number	1096327-ZSS-116-03-T-D-700
Ultra Librarian 3D Model	Ultra Librarian ZSS-116-03-T-D-700 CAD Model

Alternative Products

Description

The ZSS series connector is an elevated header type connector with male pin contact type and 32 positions.

Fastening Type: push-pull
Termination: solder
Insulation Material: polyester, glass-filled
Contact Material: phosphor bronze
Current Rating: 3A
Connection Style: board to board or cable style
Pitch-Mating: 0.100 inches (2.54mm)
Contact Finish-Mating: tin
Mounting: through-hole mounted
Shrouded: with 4 walls
Temperature Range: -55°C to 105°C
