Same model may have multiple batches, images only for reference.

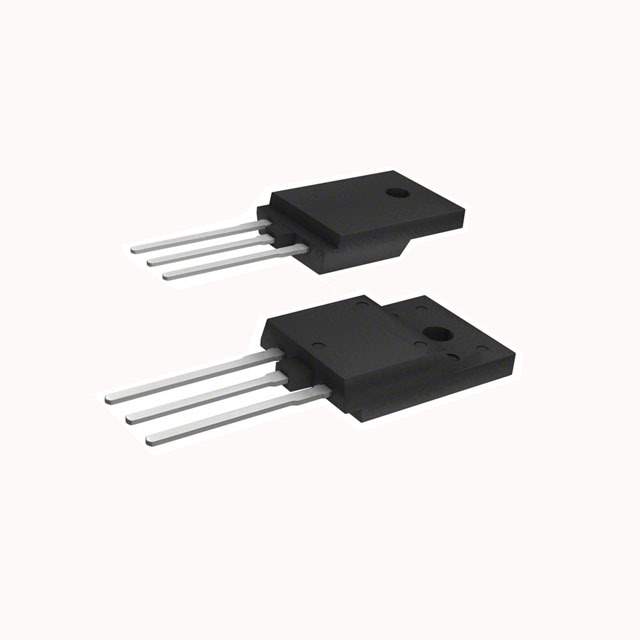

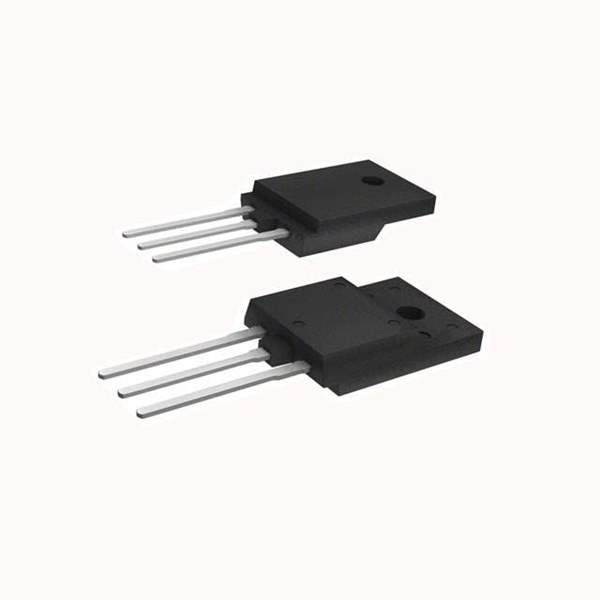

FGM622S Real Image
Same model may have multiple batches, images only for reference.

FGM622S

Part No FGM622S
Manufacturer Sanken
Catalog IGBTs - Single
Description IGBT 600V 16A TO-3PF / IGBT 600 V 25 A 60 W Surface Mount TO-3PF
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Single
Manufacturer Sanken
Packaging Tube
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector (Ic) (Max) 25 A
Current - Collector Pulsed (Icm) 75 A
Vce(on) (Max) @ Vge, Ic 1.9V @ 15V, 25A
Power - Max 60 W
Input Type Standard
Gate Charge 40 nC
Td (on/off) @ 25°C 50ns/200ns
Temperature Range - Operating 150°C (TJ)
Mounting Surface Mount
Case / Package TO-3P-3 Full Pack
Supplier Device Package TO-3PF
Base Product Number FGM622
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number FGM622S DK
Standard Package 1,080
Win Source Part Number 1324185-FGM622S
Ultra Librarian 3D Model Ultra Librarian FGM622S CAD Model

Description

The FGM622S is a single IGBT transistor manufactured by Sanken.

  • Standard Package Quantity: 1,080
  • Mounting Type: Surface Mount
  • Maximum Power: 60W
  • Voltage Collector-Emitter Breakdown (Max): 600V
  • Current Collector (Ic) (Max): 25A
  • Current Collector Pulsed (Icm): 75A
  • Gate Charge: 40nC
  • Switching Energy: -
  • HTSUS Code: 8541.29.0095
