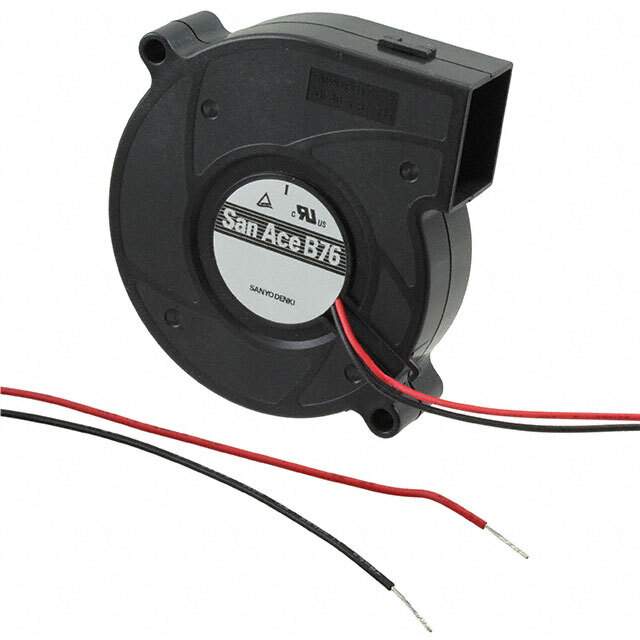

109BD24HA2 Real Image
Same model may have multiple batches, images only for reference.

109BD24HA2

Part No 109BD24HA2
Manufacturer Sanyo Denki America Inc.
Catalog DC Fans
Description BLOWER 76X30MM 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Sanyo Denki America Inc.
Series San Ace B76
Voltage Rating DC 24VDC
Dimension Square - 76mm L x 75.5mm H
Width 30.00mm
Air Flow 12.7 CFM (0.360m3/min)
Static Pressure 0.610 in H2O (151.9 Pa)
Bearing Type Ball
Fan Type Blower
Noise 41.5 dB(A)
Power (Watts) 4.08W
RPM 3000 RPM
Termination 2 Wire Leads
Operating Temperature Range -4 ~ 158°F (-20 ~ 70°C)
Approvals cURus, TUV
Weight 0.22 lb (99.79g)
Current Rating 0.170A
Voltage Range 20.4 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 40000 Hrs @ 60°C
Win Source Part Number 764304-109BD24HA2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 109BD24HA2 CAD Model

Description

The Sanyo Denki America Inc. San Ace B76 blower fan is a powerful and reliable cooling solution for electronic systems.

  • Voltage: 20.4-27.6VDC
  • Current: 0.170A
  • Air Flow: 12.7 CFM
  • Static Pressure: 0.610 in H2O
  • Noise Level: 41.5 dB(A)
  • Speed: 3000 RPM
  • Bearing Type: Ball
  • Frame Material: Plastic
  • Blade Material: Plastic
  • Lifetime: 40000 hours @ 60°C
  • Approvals: cURus, TUV
  • Applications: Thermal Management
  • Dimensions: 76mm L x 75.5mm H
  • Weight: 0.22 lb (99.79g)
