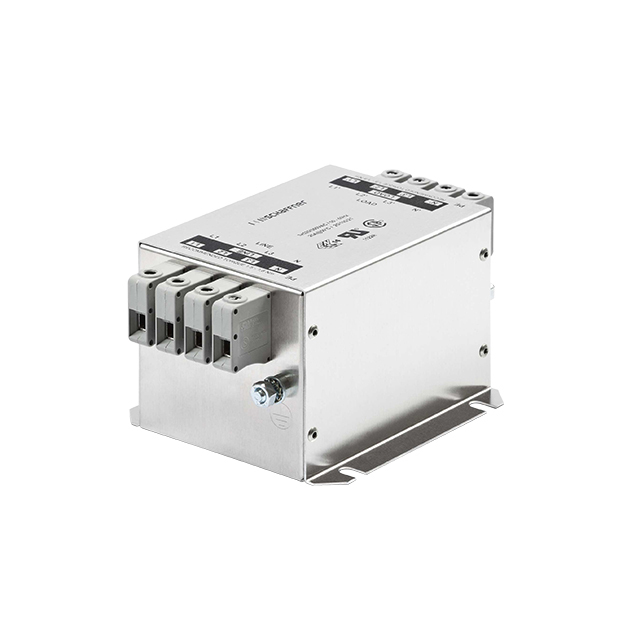

FN3256H-64-34 Schaffner EMC Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

FN3256H-64-34

Part No FN3256H-64-34
Manufacturer Schaffner EMC Inc.
Catalog Power Line Filter Modules
Description LINE FILTER 480VAC 64A CHASS MNT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Package Tray
Product Status Active
Filter Type Three Phase (Wye)
Configuration Single Stage
Voltage - Rated AC 480V
Voltage - Rated AC (Phase to Ground/Neutral) 300 V
Voltage - Rated AC (Phase to Phase) 520 V
Current 64 A
Frequency - Operating DC ~ 60Hz
Applications General Purpose
Approval Agency CSA, ENEC, UR
Operating Temperature -25°C ~ 100°C
Mounting Type Chassis Mount
Termination Style Terminal Block
Ultra Librarian 3D Model Ultra Librarian FN3256H-64-34 CAD Model
