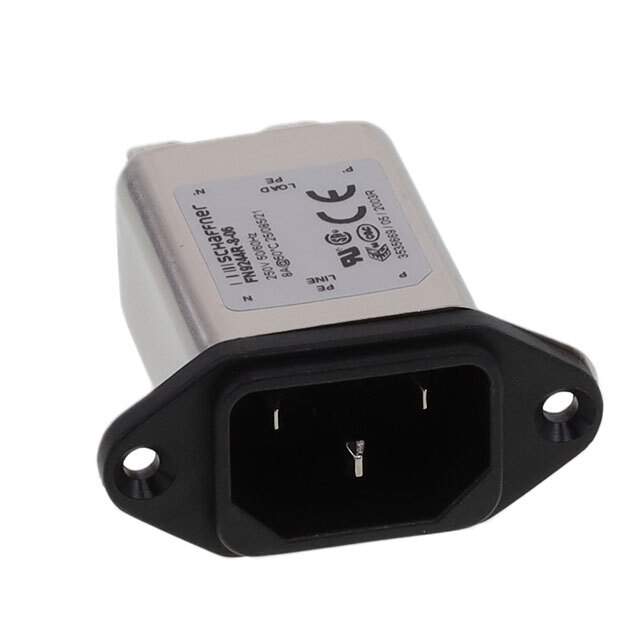

FN9244R-8-06 Real Image
Same model may have multiple batches, images only for reference.

FN9244R-8-06

Part No FN9244R-8-06
Manufacturer Schaffner EMC Inc.
Catalog Power Entry Connectors - Inlets, Outlets, Modules
Description PWR ENT RCPT IEC320-C14 PANEL QC / Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
Datasheet
FN9244R-8-06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Power Entry Connectors - Inlets, Outlets, Modules
Mfr Schaffner EMC Inc.
Series FN 9244
Package Tray
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades
Current - UL 8A
Voltage - UL 250VAC
Filter Type Filtered (EMI, RFI) - Commercial
Accomodates a Fuse No
Number of Positions 3
Mounting Type Panel Mount, Flange
Termination Quick Connect - 0.250" (6.3mm)
Features Bleed Resistor, Front or Rear Side Mount
Panel Cutout Dimensions Rectangular - 28.50mm x 21.50mm
Material Flammability Rating UL94 V-2
Ingress Protection IP40
Approval Agency CQC, CSA, ENEC, UL
Base Product Number FN9244
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Other Names 817-2650,FN9244R-8-06-ND,803299
Standard Package 120
Win Source Part Number 1201497-FN9244R-8-06
Ultra Librarian 3D Model Ultra Librarian FN9244R-8-06 CAD Model

Description

This 3-position, male-blade receptacle is a part of the FN 9244 series and is designed for IEC 320-C14 connectors.

  • Current Rating: 8A
  • Voltage Rating: 250VAC
  • Connector Features: Bleed Resistor
  • Mounting: Front or Rear Side of Panel
  • Panel Cutout Dimension: 28.50mm x 21.50mm
  • Ingress Protection: IP40
  • Filtered for: EMI and RFI
  • Flammability Rating: UL94 V-2
  • Termination: Quick Connect 0.250 inches
  • Packaging: Trays
  • REACH: Unaffected
  • Approvals: CQC, CSA, ENEC, and UL
