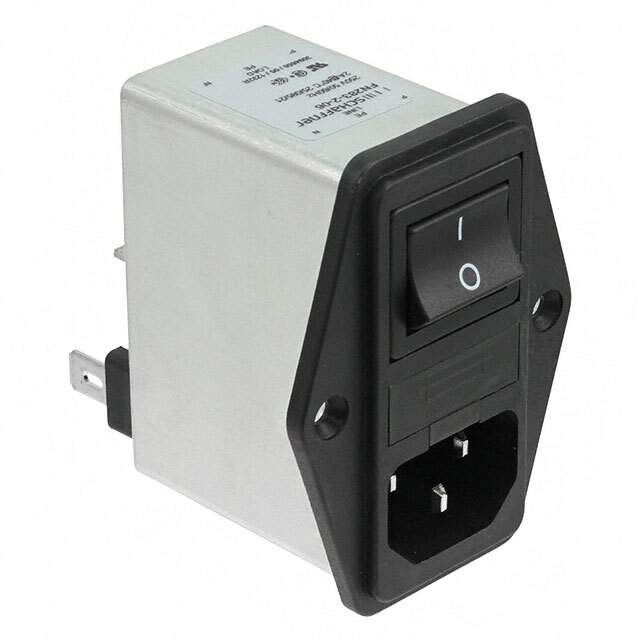

FN283-4-06 Real Image
Same model may have multiple batches, images only for reference.

FN283-4-06

Part No FN283-4-06
Manufacturer Schaffner EMC Inc.
Catalog AC Power Connectors
Description PWR ENT MOD RCPT IEC320-C14 PNL / Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
Datasheet
FN283-4-06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>AC Power Connectors>Power Entry Modules (PEM)
Manufacturer Schaffner EMC Inc.
Packaging Tray
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades - Module
Number of Positions 3
Filter Type Filtered (EMI, RFI) - Commercial
Current Rating - Filter 4A
Switch Features Switch On-Off
Accomodates a Fuse Yes (Fuse Not Included)
Mounting Panel Mount, Flange
Termination Quick Connect - 0.250" (6.3mm)
Features Front or Rear Side Mount
Fuse Holder, Drawer Fuse Holder
Panel Cutout Dimensions Rectangular - 29.00mm x 60.00mm
Material Flammability Rating UL94 V-2
Ingress Protection IP40
Approval Agency CQC, CSA, ENEC, UL
Base Product Number FN283
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Other Part Number 800333,817-1100,FN283406,284-902,FN 283 - 4 -06
Standard Package 40
Win Source Part Number 1334350-FN283-4-06
Ultra Librarian 3D Model Ultra Librarian FN283-4-06 CAD Model

Description

The Schaffner EMC Inc. FN283-4-06 is a power entry module that is designed for use in AC power connectors.

  • Connector Type: Receptacle, Male Blades
  • Module Termination: Quick Connect - 0.250" (6.3mm)
  • Filtered: EMI, RFI
  • Current Rating: 4A
  • Switch: On-Off
  • Fuse Holder: Drawer
  • Packaging: Tray
  • Standard Package: 40
  • RoHS3 Compliant: Yes
  • REACH: Unaffected
