Same model may have multiple batches, images only for reference.

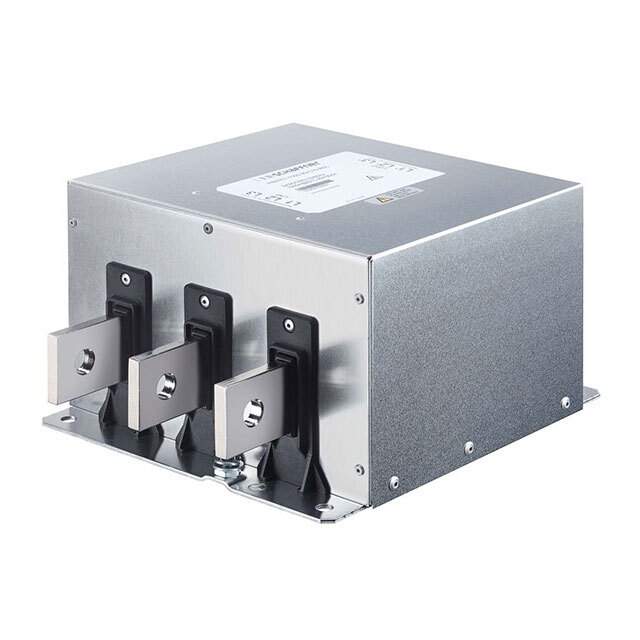

FN3310-1000-99-R5 Real Image
Same model may have multiple batches, images only for reference.

FN3310-1000-99-R5

Part No FN3310-1000-99-R5
Manufacturer Schaffner EMC Inc.
Catalog Power Line Filter Modules
Description LINE FILTER 520VAC 1KA CHASS MNT / Three Phase (Delta) EMC/EMI Line Filter 1 kA 520VAC DC ~ 60Hz Single Stage Terminal Post
Datasheet
FN3310-1000-99-R5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Power Line Filter Modules
Mfr Schaffner EMC Inc.
Series FN 3310
Package Box
Filter Type Three Phase (Delta)
Configuration Single Stage
Voltage - Rated AC 520V
Voltage - Rated AC (Phase to Phase) 520 V
Current 1 kA
Frequency - Operating DC ~ 60Hz
Applications General Purpose
Approval Agency CE, cURus, ENEC
Temperature Range - Operating -40°C ~ 100°C
Mounting Type Chassis Mount
Termination Style Terminal Post
Base Product Number FN3310
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
California Prop 65 Warning Information
Win Source Part Number 1336808-FN3310-1000-99-R5
Ultra Librarian 3D Model Ultra Librarian FN3310-1000-99-R5 CAD Model

Description

The FN 3310 series from Schaffner EMC Inc. presents the 1336808-FN3310-1000-99-R5, a three phase (delta) power line filter module for general purpose applications.

  • Termination Style: Terminal Post
  • Package: Box
  • Configuration: Single Stage
  • Current Rating: 1kA
  • Voltage Rating: 520VAC (phase to phase)
  • Frequency Range: DC ~ 60Hz
  • Temperature Range: -40°C to 100°C
  • Mounting Type: Chassis Mount
  • Approvals: CE, cURus, ENEC
  • HTSUS: 8536.30.8000
  • REACH: Unaffected
