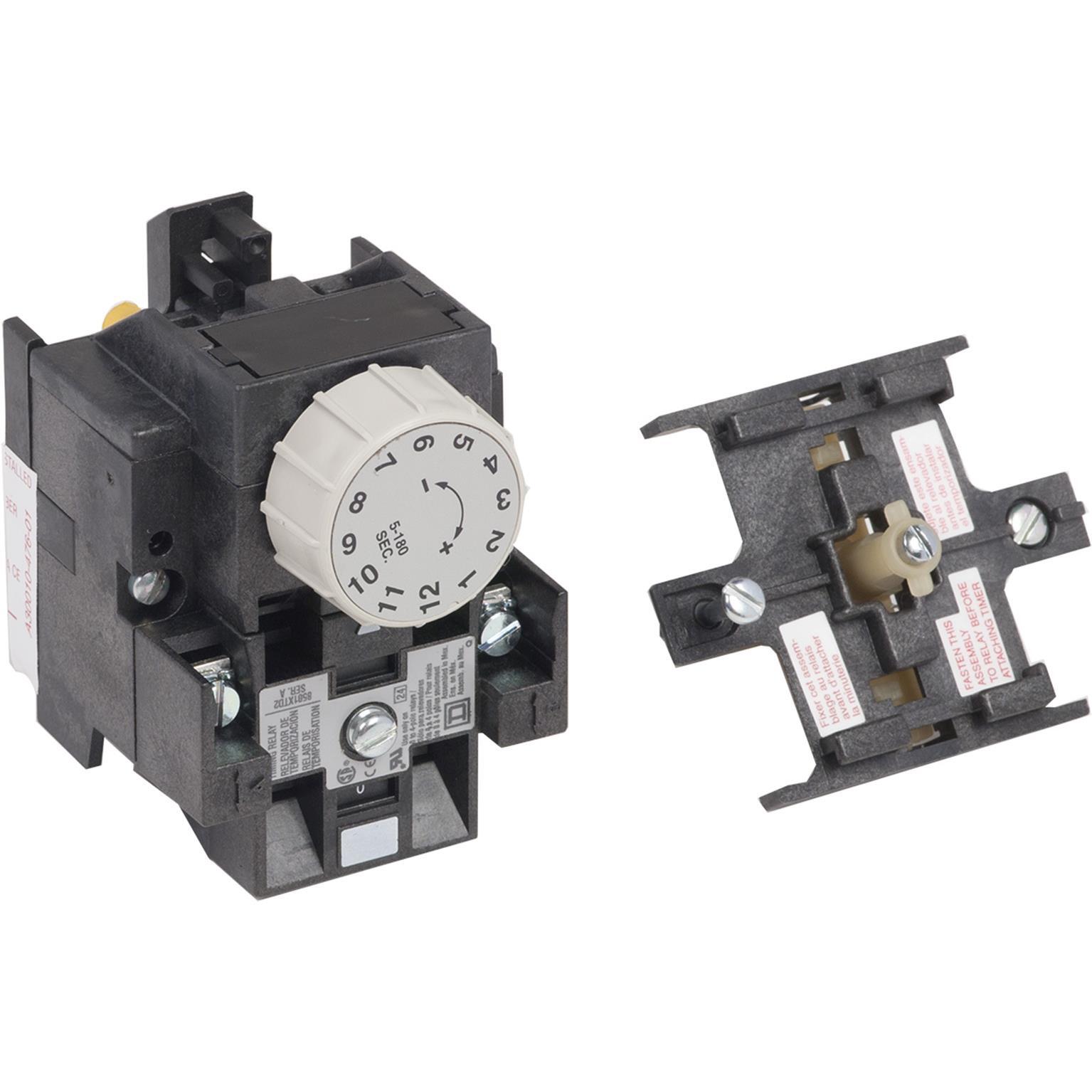

Same model may have multiple batches, images only for reference.
8501XMO40V02 Schneider Electric – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

8501XMO40V02

Part No 8501XMO40V02
Manufacturer Schneider Electric
Catalog Power Relays, Over 2 Amps
Description RELAY 600VAC 20AMP NEMA +OPTIONS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type DIN Rail
Coil Voltage 120VAC
Contact Form 4PST-NO (4 Form A)
Contact Rating (Current) 10 A
Switching Voltage 600VAC - Max
Load - Max Switching 6000VA
Coil Type Non Latching
Termination Style Screw Terminal
Operate Time 15 ms
Release Time 16 ms
Temperature Range - Operating -40°C ~ 71°C
Approval Agency CSA, UL
Relay Type General Purpose
Package Box
Supply and Demand Status Shortage
Win Source Part Number 1550668-8501XMO40V02
Ultra Librarian 3D Model Ultra Librarian 8501XMO40V02 CAD Model
