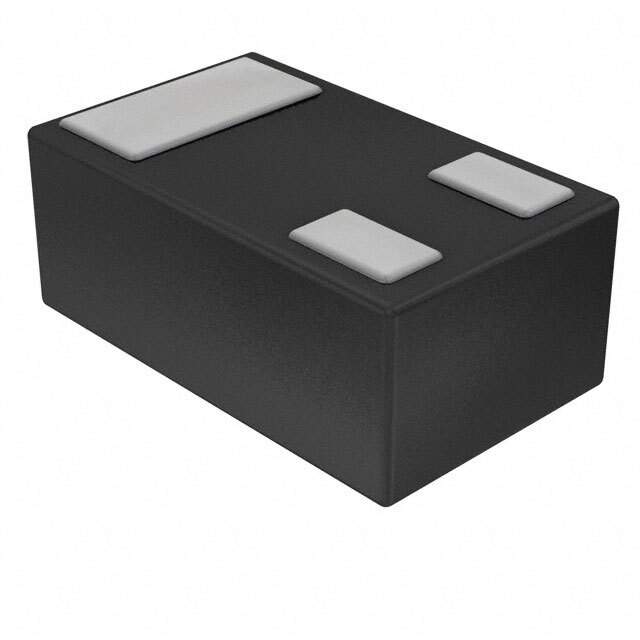

ECLAMP0501T.TCT Real Image
Same model may have multiple batches, images only for reference.

ECLAMP0501T.TCT

Part No ECLAMP0501T.TCT
Manufacturer Semtech Corporation
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC 1 KOHM/12PF ESD SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Estimated Pruduction Lead Time 21 Weeks
Features RC EMI Filter 1st Order High Pass 1 Channel R = 1kOhm, C = 12pF 2 A 3-XFDFN
Manufacturer Semtech Corporation
Series EMIClamp®
Package Reel - TR
Operating Temperature Range -40°C ~ 85°C
Mounting Surface Mount
Package 3-XFDFN
Family Name ECLAMP0501
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.90.0100
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 870060-ECLAMP0501T.TCT
Ultra Librarian 3D Model Ultra Librarian ECLAMP0501T.TCT CAD Model

Description

The Semtech Corporation ECLAMP0501T.TCT is an EMI filter with a 1st order high pass RC filter.

  • Manufacturer: Semtech Corporation
  • Type: EMI Filter
  • Filter Type: 1st Order High Pass RC Filter
  • Channels: 1
  • Resistance: 1kOhm
  • Capacitance: 12pF
  • Current Rating: 2A
  • Mounting: Surface Mount
  • Category: Filters
  • Series: EMIClamp®
