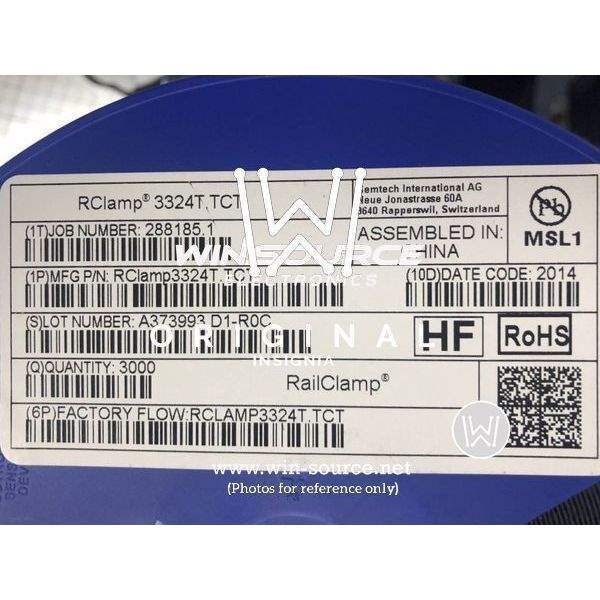

RCLAMP3324T.TCT Real Image RCLAMP3324T.TCT label picture
Same model may have multiple batches, images only for reference.
RCLAMP3324T.TCT Real Image RCLAMP3324T.TCT label picture
RCLAMP3324T.TCT Real Image RCLAMP3324T.TCT label picture
Same model may have multiple batches, images only for reference.

RCLAMP3324T.TCT

Part No RCLAMP3324T.TCT
Manufacturer Semtech Corporation
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM 10.5VC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Semtech Corporation
Series RailClamp
Packaging Reel - TR
Type Steering (Rail to Rail)
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) 3.3V (Maximum)
Minimum Breakdown Voltage 3.8V
Maximum Clamping Voltage 10.5V
Current - Peak Pulse (10/1000μs) 5A (8/20μs)
Power - Peak Pulse 75W
Power Line Protection Yes
Applications HDMI
Capacitance @ Frequency 0.4pF @ 1MHz
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting SMD
Package 6-XFDFN
Manufacturer Package SLP1710P4T
Manufacturer Homepage www.semtech.com
Win Source Part Number 711838-RCLAMP3324T.TCT
Popularity Medium
Supply and Demand Status Balance
Family Name RClamp3324T
Introduction Date November 28, 2012
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian RCLAMP3324T.TCT CAD Model

Description

The RCLAMP3324T.TCT is a steering (rail to rail) transient voltage suppressor diode that is manufactured by Semtech Corporation. It is a medium-popularity electronic component that is used in various applications, including HDMI.

  • Type: Transient Voltage Suppressor Diode
  • Applications: HDMI
  • RoHS Compliant: Yes
  • Supply and Demand Status: Balanced
  • Maximum Clamping Voltage: 10.5V
  • Minimum Breakdown Voltage: 3.8V
  • Power Peak Pulse: 75W
  • Capacitance: 0.4pF @ 1MHz
  • Package: 6-XFDFN
  • Mounting: SMD
