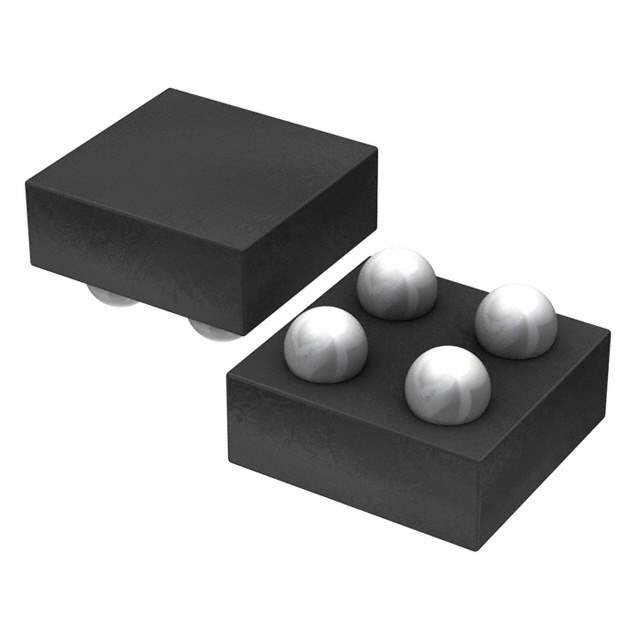

SC725CSTRT Real Image
Same model may have multiple batches, images only for reference.

SC725CSTRT

Part No SC725CSTRT
Manufacturer Semtech Corporation
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR SWITCH N-CHAN 1:1 4CSP  /  Power Switch/Driver 1:1 N-Channel 2A 4-CSP (0.76x0.76)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Power Distribution Switches, Load Drivers
Mfr Semtech Corporation
Package Tape & Reel
Switch Type General Purpose
Number of Outputs 1
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 1.1V ~ 3.6V
Supply Voltage - Operating Not Required
Current - Output (Max) 2A
Rds On (Typ) 24mOhm
Features Load Discharge, Slew Rate Controlled
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Supplier Device Package 4-CSP (0.76x0.76)
Package / Case 4-WFBGA, CSPBGA
Base Product Number SC725
Other Names SC725CSTRTTR,SC725CSTRTDKR,SC725CSTRTCT
Standard Package 5,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1253232-SC725CSTRT
Ultra Librarian 3D Model Ultra Librarian SC725CSTRT CAD Model

Description

The SC725CSTRT is a load driver that is used for power distribution switches and is a product of Semtech Corporation.

  • Feature: Slew Rate Controlled Load Discharge
  • Packaging: Tape and Reel
  • Standard Package: 5,000
  • Output Type: N-Channel
  • Input Type: On/Off
  • Switch Type: General Purpose
  • Output Configuration: High Side
  • Current Output (Max): 2A
  • Voltage Load: 1.1V to 3.6V
  • Rds On (Typ): 24mOhm
  • ECCN: EAR99
