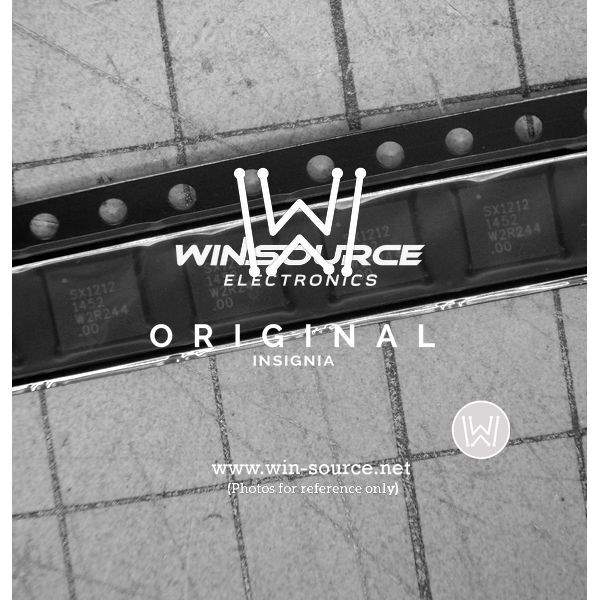

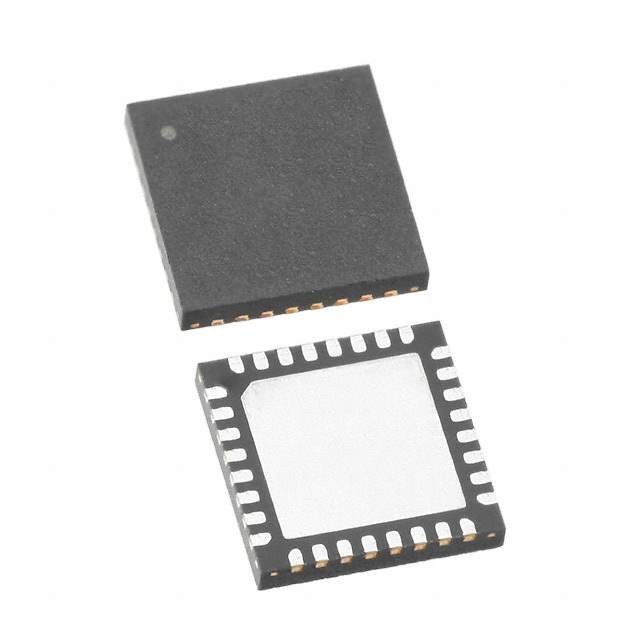

The SX1212IWLTRT is a low-power, high-performance ISM (Industrial, Scientific, and Medical) band transceiver from Semtech Corporation. This transceiver is designed for wireless applications operating in the 433/868/915 MHz frequency bands. It is characterized by its robust communication capabilities and its ability to operate with low power consumption, making it suitable for battery-powered and long-range applications.

Applications

• Wireless Sensor Networks (WSN)
• Remote Control Systems
• Automatic Meter Reading (AMR)
• Home and Building Automation
• Security Systems
• Industrial Control Systems
• Keyless Entry Systems

Features

• Frequency Bands: Operates in the 433, 868, and 915 MHz ISM bands.
• Modulation: Supports FSK (Frequency Shift Keying) and OOK (On-Off Keying) modulation schemes.
• Data Rate: Programmable data rates to optimize performance and power consumption.
• Low Power Consumption: Designed for battery-powered applications with low active and sleep current consumption.
• High Receiver Sensitivity: Provides excellent receiver sensitivity for extended communication range.
• Programmable Output Power: Adjustable transmitter output power for optimal range and power efficiency.
• SPI Interface: Standard SPI interface for easy integration with microcontrollers.
• Wake-up Timer: Integrated wake-up timer for periodic wake-up and sleep modes, conserving power.
• RSSI (Received Signal Strength Indicator): Provides signal strength information for link quality assessment.
• Automatic Frequency Control (AFC): Compensates for frequency drift to maintain reliable communication.

Benefits

• Long Range Communication: The high receiver sensitivity and programmable output power enable long-range wireless communication.
• Extended Battery Life: Minimizes battery consumption, extending the lifespan of battery-powered devices.
• Design Flexibility: Supports multiple frequency bands and modulation schemes, providing flexibility in design and application.
• Easy Integration: The SPI interface simplifies integration with microcontrollers and other system components.
• Robust Communication: Provides reliable wireless communication in challenging environments.
• Cost-Effective Solution: Offers a cost-effective solution for various wireless communication applications.

Additional Details

The SX1212IWLTRT transceiver utilizes FSK and OOK modulation techniques and is widely employed in applications demanding both robust and energy-efficient wireless communication. The programmable features of the SX1212IWLTRT allow for performance optimization according to specific application requirements. The SPI interface simplifies the configuration and control of the device via a microcontroller. The supply voltage typically ranges from 2.1V to 3.6V, catering to battery-powered applications.

This transceiver is designed with a compact form factor and low power needs, making it suited for a variety of wireless contexts, including remote control, sensor networks, and automated building management. Careful configuration of its various features, such as the wake-up timer and programmable output power, is critical to maximize performance within a specific application context.
