Same model may have multiple batches, images only for reference.

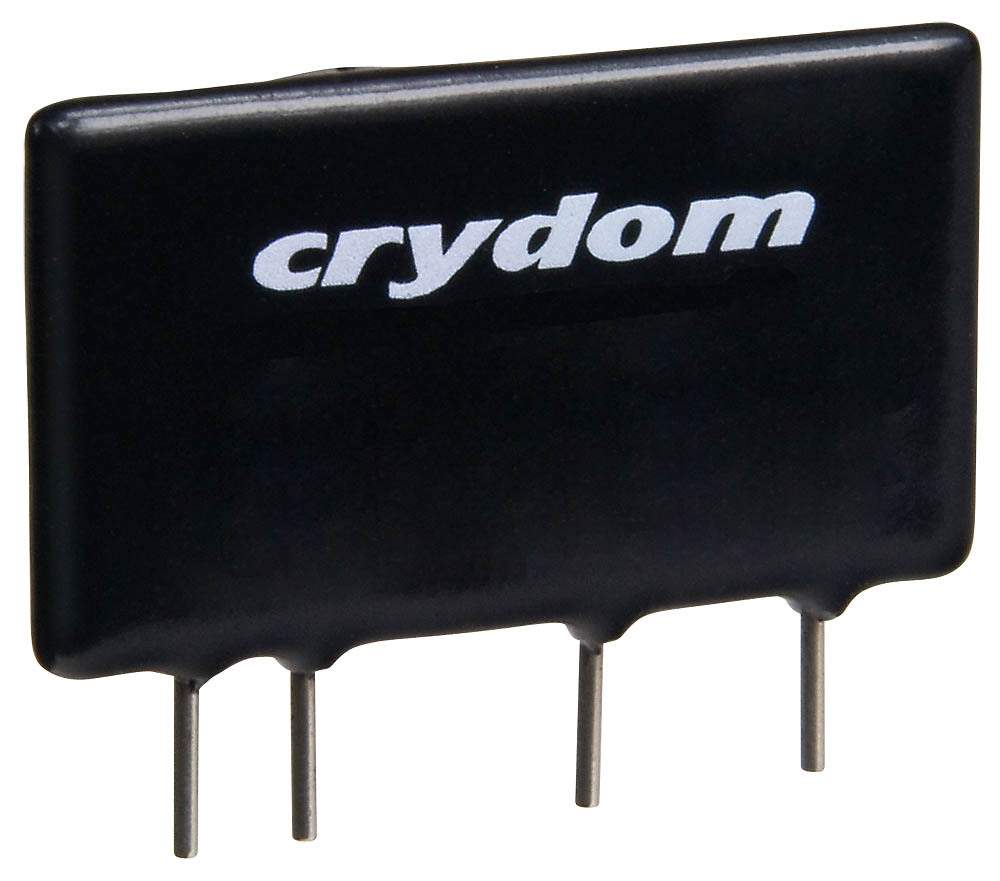

CMXE100D10 Real Image
Same model may have multiple batches, images only for reference.

CMXE100D10

Part No CMXE100D10
Manufacturer Sensata-Crydom
Catalog Solid State Relays
Description SSR RELAY SPST-NO 10A 0-100V  /  Solid State SPST-NO (1 Form A) 4-SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Solid State Relays
Mfr Sensata-Crydom
Series CMX
Package Bulk
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 20 ~ 28VDC
Voltage - Load 0 V ~ 100 V
Load Current 10 A
On-State Resistance (Max) 10 mOhms
Termination Style PC Pin
Package / Case 4-SIP
Supplier Device Package 4-SIP
Base Product Number CMXE100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0060
Other Names 2266-CMXE100D10,CC2110,CMXE100D10-ND
Standard Package 40
Win Source Part Number 1173169-CMXE100D10
Ultra Librarian 3D Model Ultra Librarian CMXE100D10 CAD Model

Description

The Sensata-Crydom CMXE100D10 is a solid state relay designed for through hole mounting.

  • Input Voltage: 20 ~ 28VDC
  • Load Current: 10 A
  • On-State Resistance: 10 mOhms
  • Circuit: SPST-NO (1 Form A)
  • Output Type: DC
  • Package: 4-SIP
  • Standard Package: 40
