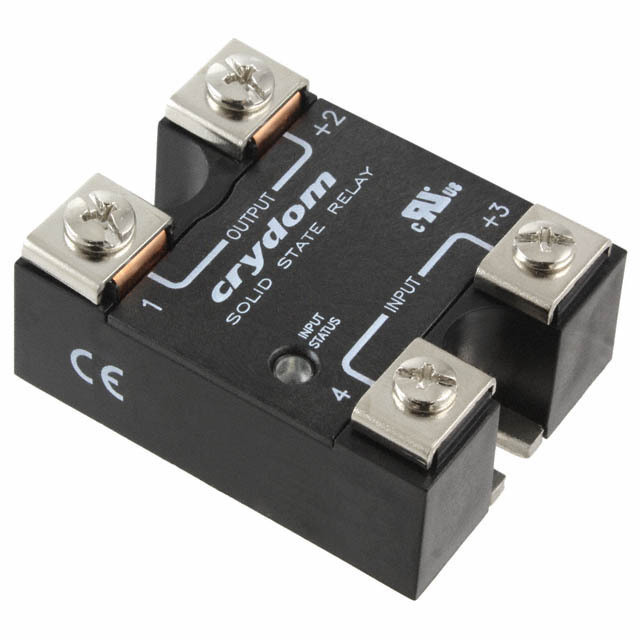

DC100D20 Sensata-Crydom – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

DC100D20

Part No DC100D20
Manufacturer Sensata-Crydom
Catalog Solid State Relays
Description SSR RELAY SPST-NO 20A 1-72V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Chassis Mount
Circuit SPST-NO (1 Form A)
Output Type DC
Voltage - Input 4 ~ 32VDC
Voltage - Load 1 V ~ 72 V
Load Current 20 A
On-State Resistance (Max) 12 mOhms
Termination Style Screw Terminal
Temperature Range - Operating -40°C ~ 100°C
Case / Package Hockey Puck
Approval Agency CE, cURus
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1503017-DC100D20
Ultra Librarian 3D Model Ultra Librarian DC100D20 CAD Model

Description
