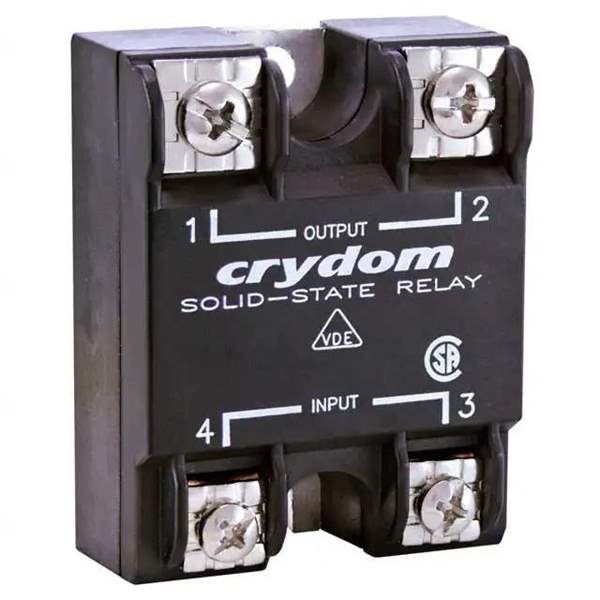

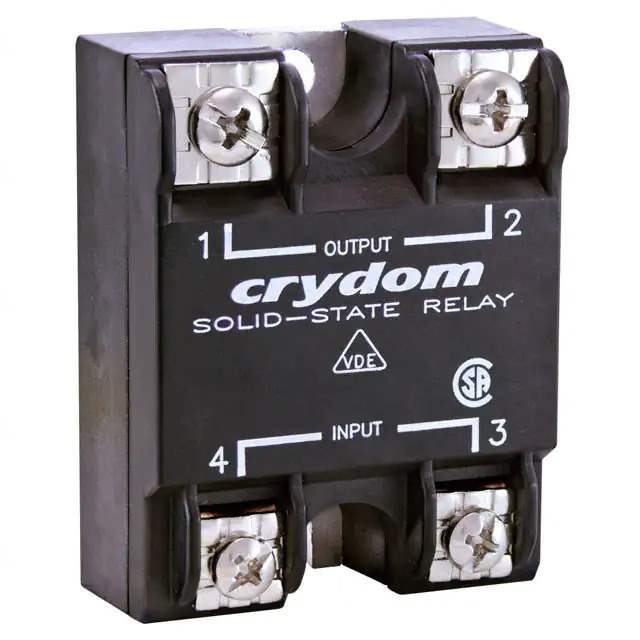

HD48125 Real Image
Same model may have multiple batches, images only for reference.

HD48125

Part No HD48125
Manufacturer Sensata-Crydom
Catalog Solid State Relays
Description SSR RELAY SPST-NO 125A 48-530V / Solid State SPST-NO (1 Form A) Hockey Puck
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Sensata-Crydom
Series HD48
Package Bulk
Product Status Active
Mounting Type Chassis Mount
Circuit SPST-NO (1 Form A)
Output Type AC, Zero Cross
Voltage - Input 3 ~ 32VDC
Voltage - Load 48 V ~ 530 V
Load Current 125 A
Termination Style Screw Terminal
Package / Case Hockey Puck
Standard Package 20 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.49.0080
California Prop 65 Warning Information
Win Source Part Number 847017-HD48125
Ultra Librarian 3D Model Ultra Librarian HD48125 CAD Model

Description

The 847017-HD48125 is a high-power solid-state relay from the HD48 series by Sensata-Crydom.

  • Load Current: Up to 125A
  • Termination Style: Screw Terminal
  • Output Type: AC Zero Cross
  • Voltage Input Range: 3 to 32VDC
  • Voltage Load Range: 48V to 530V
  • Mounting: Chassis Mountable
  • Package: Hockey Puck
  • Package: Bulk, 20 pcs
  • Product Status: Active
  • Compliance: California Prop 65 compliant
