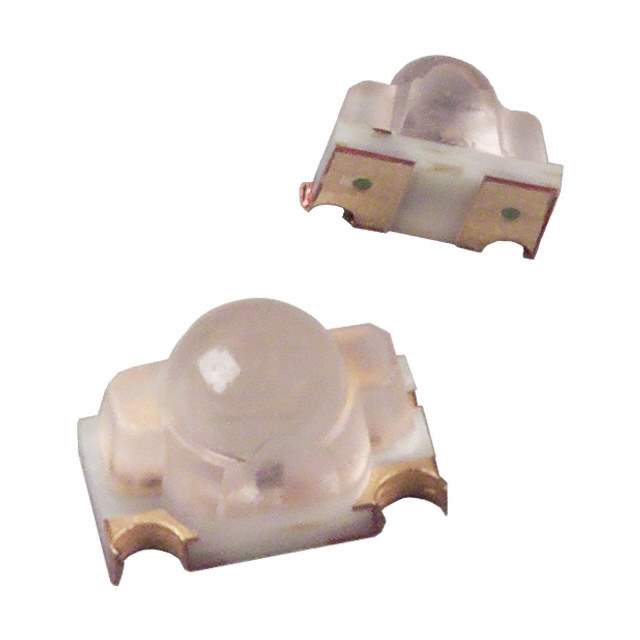

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Sharp Microelectronics
Packaging Cut Tape (CT)
Status Obsolete
Type Infrared (IR)
Current - DC Forward (If) (Maximum) 50mA
Wavelength 940nm
Voltage - Forward (Vf) 1.2V
Viewing Angle 20°
Orientation Top View
Temperature Range - Operating -30°C ~ 85°C
Mounting Style SMT, Right Angle
Manufacturer Package 2-SMD, No Lead
Manufacturer Pack Quantity 1
MSL Level 3 (168 Hours)
Win Source Part Number 1177172-GL100MN0MP
Manufacturer Homepage sharp-world.com/
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian GL100MN0MP CAD Model

Description

The GL100MN0MP is a high-performance infrared (IR) LED with a wavelength of 940nm from Sharp Microelectronics.

  • Mounting: Surface-mounted on printed circuit boards
  • Orientation: Right-angle, Top View
  • Viewing Angle: 20 degrees
  • Applications: Remote controls, security systems, and optical sensors
  • Maximum DC Forward Current: 50mA
  • Forward Voltage: 1.2V
  • Temperature Range: -30°C to 85°C
  • Package: 2-SMD, no-lead
  • Status: Obsolete
  • Alternative Part: GL100MN0MP1
