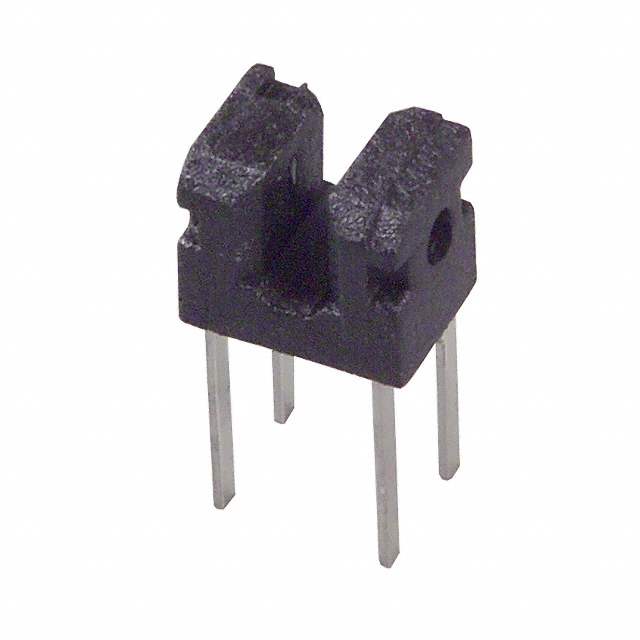

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Sensing Distance 0.039" (1mm)
Sensing Method Transmissive
Continuous forward current- Max 50mA
Maximum Current Collector 20mA
VCEO Maximum Collector-Emitter Breakdown Voltage 35V
Response Time 50μs, 50μs
Temperature Range - Operating -25°C to 85°C
Mounting Through Hole
Type Unamplified
Win Source Part Number 120859-GP1S096HCZ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian GP1S096HCZ CAD Model

Description

This component comes in a tube/rail packaging and is unamplified.

  • Mounting: Through Hole
  • Sensing Method: Transmissive
  • Sensing Distance: 0.039" (1mm)
  • Category: Sensors and Transducers
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Balanced
  • Temperature Range: -25°C to 85°C
