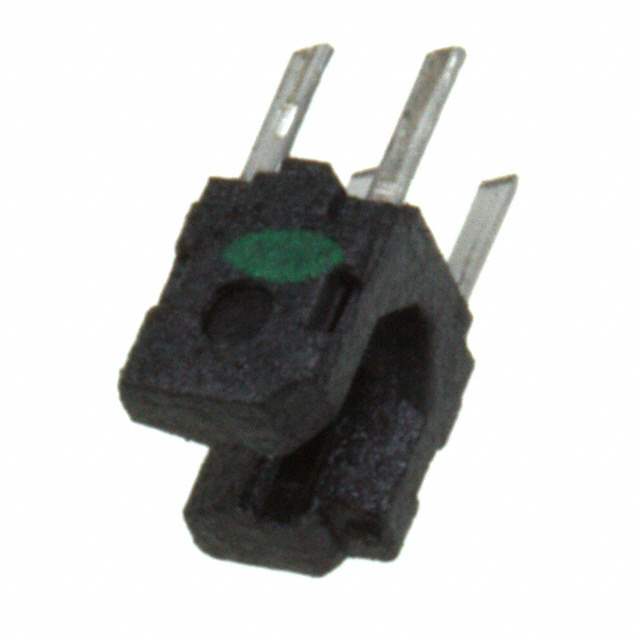

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Sensing Distance 0.043" (1.1mm)
Sensing Method Transmissive
Continuous forward current- Max 30mA
Maximum Current Collector 20mA
VCEO Maximum Collector-Emitter Breakdown Voltage 35V
Response Time 50μs, 50μs
Temperature Range - Operating -25°C to 85°C
Mounting Through Hole
Type Unamplified
Win Source Part Number 204460-GP1S196HCZ0F
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian GP1S196HCZ0F CAD Model

Description

The Sharp Microelectronics 204460-GP1S196HCZ0F is an electronic component that is part of the sensors and transducers category. It is an obsolete (EOL) product with high popularity. The manufacturer of this product is Sharp Microelectronics and the Win Source Part Number is 204460-GP1S196HCZ0F. This product is a type of unamplified electronic component with a response time of 50μs. It has a sensing method of transmissive and a sensing distance of 0.043 inches (1.1mm). It requires through-hole mounting and has a maximum current collector of 20mA. The VCEO maximum collector-emitter breakdown voltage for this product is 35V and the continuous forward current-max is 30mA.
