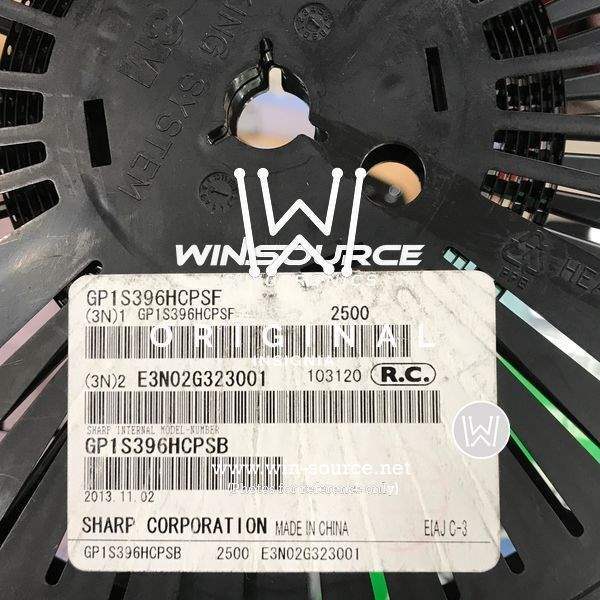

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Sensing Distance 0.047" (1.2mm)
Sensing Method Transmissive
Continuous forward current- Max 30mA
Maximum Current Collector 20mA
VCEO Maximum Collector-Emitter Breakdown Voltage 35V
Response Time 30μs
Temperature Range - Operating -25°C to 85°C
Mounting SMD (SMT)
Win Source Part Number 1041045-GP1S396HCPSF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Family Name GP1S396HCPSF
ECCN EAR99
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian GP1S396HCPSF CAD Model

Description

The GP1S396HCPSF is an electronic component manufactured by Sharp Microelectronics.

  • Sensing Method: Transmissive
  • Sensing Distance: 0.047" (1.2mm)
  • Response Time: 30μs
  • Category: Sensors and Transducers
  • Popularity: High
