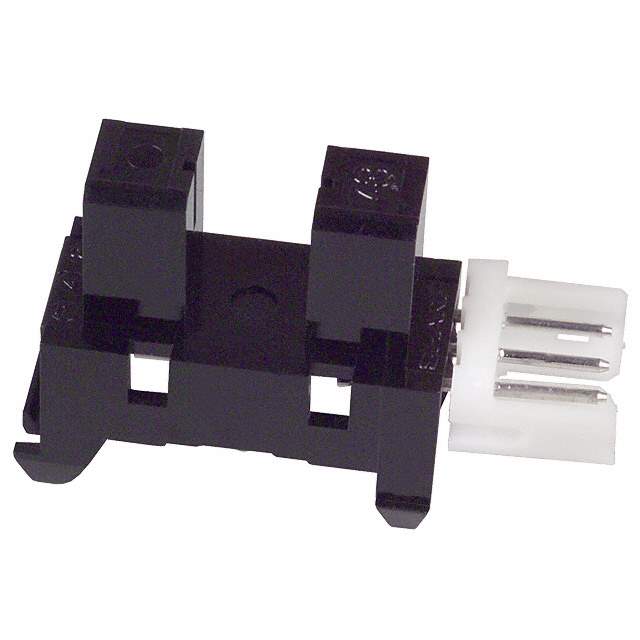

GP1S73P2 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Sensors, Transducers>Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Mfr Sharp Microelectronics
Package Bulk
Product Status Obsolete
Sensing Distance 0.197" (5mm)
Sensing Method Through-Beam
Output Configuration Phototransistor
Current - DC Forward (If) (Max) 50 mA
Current - Collector (Ic) (Max) 20 mA
Voltage - Collector Emitter Breakdown (Max) 35 V
Response Time 3µs, 4µs
Temperature Range - Operating -25°C ~ 85°C
Mounting Type Snap-In
Package / Case Module, Connector
Type Unamplified
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Other Names 425-1060-5
Standard Package 50
Win Source Part Number 1060961-GP1S73P2
Ultra Librarian 3D Model Ultra Librarian GP1S73P2 CAD Model

Description

The GP1S73P2 is an optical sensor photointerrupter slot type transistor output electronic component.

  • Sensing Type: Unamplified
  • Sensing Method: Through-beam
  • Sensing Distance: 0.197 inches (5mm)
  • Response Time: 3µs and 4µs
  • Package: Bulk
  • Standard Package: 50
  • Voltage of Collector Emitter Breakdown (Max): 35V
  • Current of Collector (Ic) (Max): 20mA
  • Current of DC Forward (If) (Max): 50mA
  • Output Configuration: Phototransistor
  • Mounting Type: Snap-in
  • Package/Case: Module Connector
  • Temperature Range: -25°C ~ 85°C
  • Alternative Parts: 425-1060-5
  • Mfr: Sharp Microelectronics
