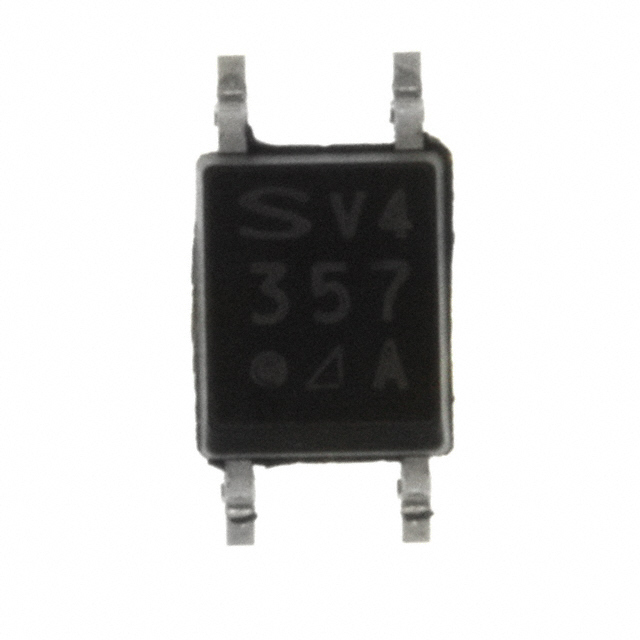

PC357N1TJ00F Sharp Microelectronics PC357N1TJ00F real image PC357N1TJ00F Real Image1 PC357N1TJ00F Real Image2

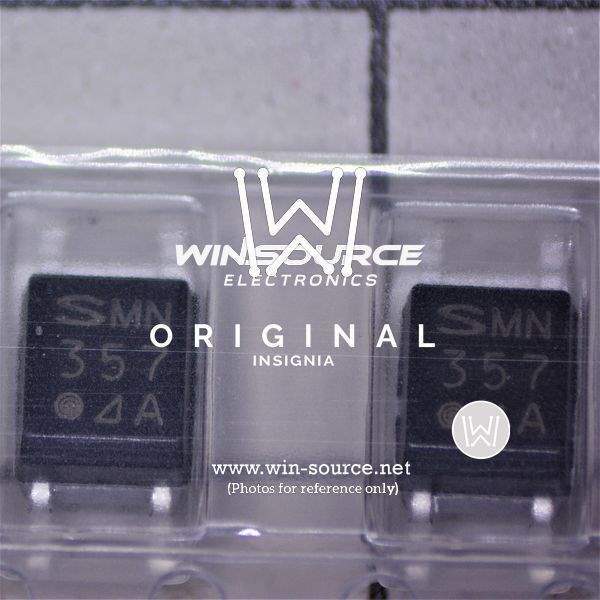

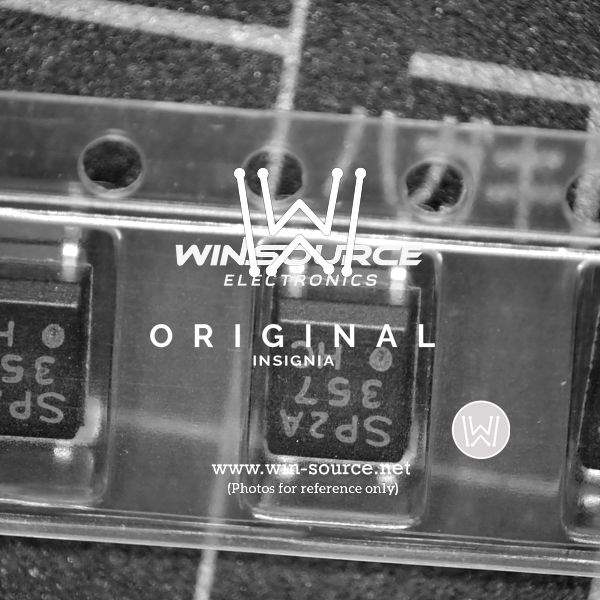

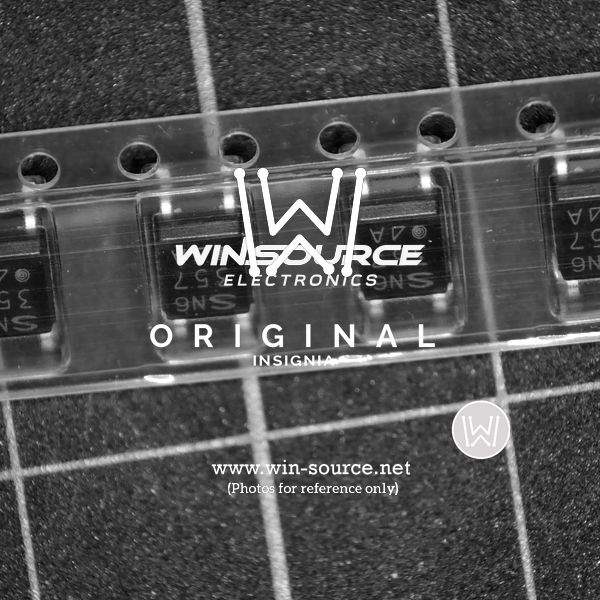

PC357N1TJ00F Sharp Microelectronics PC357N1TJ00F real image PC357N1TJ00F Real Image1 PC357N1TJ00F Real Image2
Same model may have multiple batches, images only for reference.

PC357N1TJ00F

Part No PC357N1TJ00F
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.75KV TRANS 4-MINI-FLAT
Datasheet
PC357N1TJ00F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 80% @ 5mA
Maximum DC Current Transfer Ratio 160% @ 5mA
Rise and Fall Time 4μs, 3μs
Input Type DC
Output Type Transistor
Maximum Output Voltage 80V
Channel Output Current 50mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 200mV
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-Mini-Flat
Win Source Part Number 026420-PC357N1TJ00F
Family Name PC357
Introduction Date February 24, 1997
ECCN EAR99
Country of Origin China, Indonesia, Japan
Estimated EOL Date Obsolete
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Computers & Computer Peripherals, Test & Measurement, Signal Processing
Ultra Librarian 3D Model Ultra Librarian PC357N1TJ00F CAD Model

Description

The Sharp Microelectronics PC357N1TJ00F is an obsolete (EOL) transistor output type isolator with 1 channel and a forward voltage of 1.2V.

  • Channels: 1
  • Forward Voltage: 1.2V
  • Isolation Voltage: 3750Vrms
  • Vce saturation (max): 200mV
  • Package: mini-flat
  • DC Current Transfer Ratio (min): 80% @ 5mA
  • DC Current Transfer Ratio (max): 160% @ 5mA
  • Temperature Range: -30°C to 100°C
  • Popularity: high
  • Applications: computers & computer peripherals, test & measurement, and signal processing
