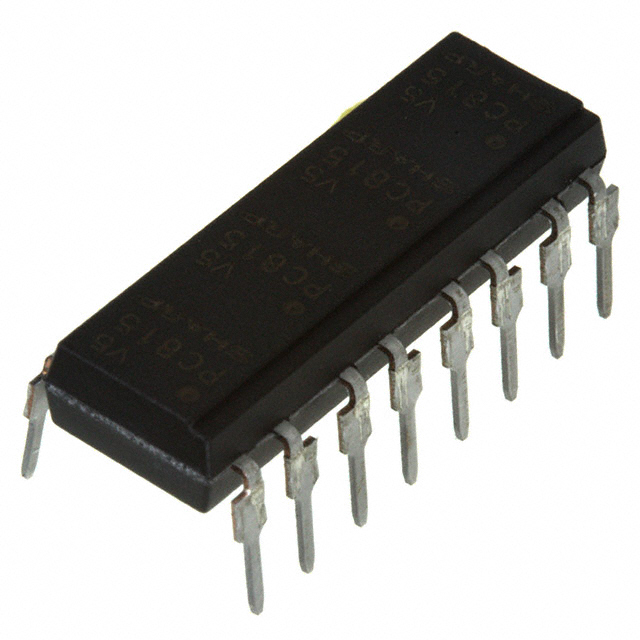

PC845 Sharp Microelectronics
Same model may have multiple batches, images only for reference.

PC845

Part No PC845
Manufacturer Sharp Microelectronics
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV 4CH DARLINGTON 16DIP
Datasheet
PC845 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Tube/Rail
Status Obsolete(EOL)
Number of Channels 4
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 600% @ 1mA
Rise and Fall Time 60μs, 53μs
Input Type DC
Output Type Darlington
Maximum Output Voltage 35V
Channel Output Current 80mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 1V
Temperature Range - Operating -30°C to 100°C
Mounting Through Hole
Case / Package 16-DIP
Win Source Part Number 344932-PC845
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PC845 CAD Model

Description

The Sharp Microelectronics PC845 is a through-hole isolator with four channels.

  • Output Type: Darlington output type
  • Minimum DC Current Transfer Ratio: 600% @ 1mA
  • Vce Saturation: 1V
  • Isolation Voltage: 5000Vrms
  • Rise and Fall Time: 60μs and 53μs, respectively
  • Maximum Output Voltage: 35V
  • Channel Output Current: 80mA
  • Continuous Forward Current: 50mA
  • Temperature Range: -30 to 100 degrees Celsius
  • Status: Obsolete (EOL)
  • Category: Isolators
  • Package: 16-DIP case/package
  • Popularity: Medium
  • Supply and Demand Status: Balanced
