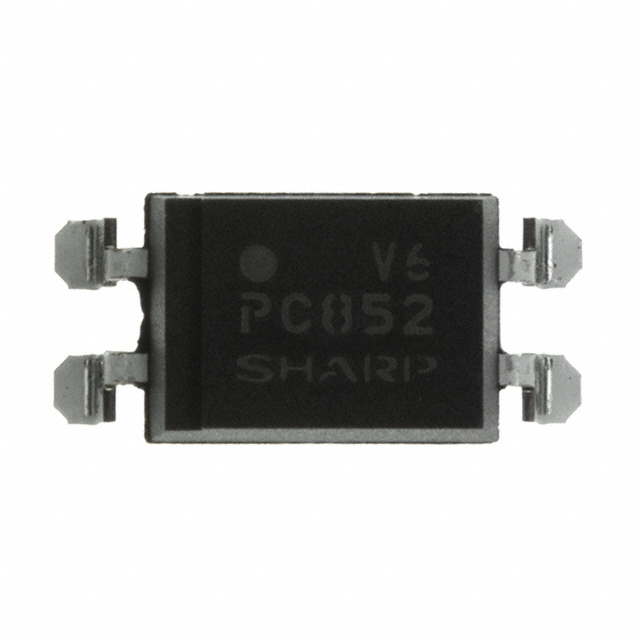

PC852XPJ000F Sharp Microelectronics
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Isolators
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 5000Vrms
Minimum DC Current Transfer Ratio 1000% @ 1mA
Rise and Fall Time 100μs, 20μs
Input Type DC
Output Type Darlington
Maximum Output Voltage 350V
Channel Output Current 150mA
Forward Voltage 1.2V
Continuous forward current- Max 50mA
Vce Saturation (Max) 1.2V
Temperature Range - Operating -30°C to 100°C
Mounting SMD (SMT)
Case / Package 4-SMD
Win Source Part Number 1086704-PC852XPJ000F
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PC852XPJ000F CAD Model

Description

The PC852XPJ000F is an optocoupler from Sharp Microelectronics.

  • Output Type: Darlington
  • Isolation Voltage: 5000Vrms
  • Minimum DC Current Transfer Ratio: 1000% @ 1mA
  • Maximum Output Voltage: 350V
  • Packaging: Surface Mount
  • Suitable for: Industrial and consumer applications
