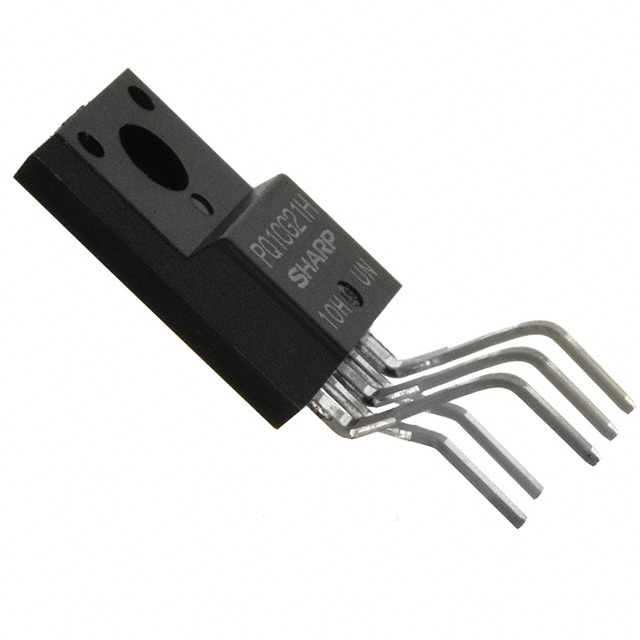

PQ1CG21H2FZH

Name: PQ1CG21H2FZH
Brand: Sharp Microelectronics
SKU: 740822
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	PQ1CG21H2FZH
Manufacturer	Sharp Microelectronics
Catalog	PMIC - Voltage Regulators - DC DC Switching Regulators
Description	IC REG BUCK INV ADJ 1.5A TO220
Datasheet	PQ1CG21H2FZH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits (ICs)
Manufacturer	Sharp Microelectronics
Packaging	Tube
Part Status	Obsolete(EOL)
Function	Step-Down
Output Configuration	Positive or Negative
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Input Voltage MIN	8V
Voltage Input MAX	35V
Output Voltage	±1.26V
Output Voltage MAX	35V, -30V
Output Current	1.5A
Frequency - Switching	100kHz
Synchronous Rectifier	No
Operating Temperature Range	-20°C ~ 80°C (TA)
Mounting Style	Through Hole
Package	TO-220-5 Formed Leads
Manufacturer Package	TO-220-5
Manufacturer Homepage	sharp-world.com
Win Source Part Number	740822-PQ1CG21H2FZH
Popularity	Medium
Supply and Demand Status	Limited
Family Name	PQ1CG21H2
Introduction Date	August 02, 2001
Estimated EOL Date	2026
Ultra Librarian 3D Model	Ultra Librarian PQ1CG21H2FZH CAD Model

Alternative Products

Description

The Sharp Microelectronics PQ1CG21H2FZH is a buck switching regulator that is widely used in various electronic applications. This regulator features a package of TO-220-5 Formed Leads and a mounting style of through hole. This product is manufactured by Sharp Microelectronics.

Package: TO-220-5 Formed Leads
Mounting Style: Through Hole
Output Current: 1.5A
Temperature Range: -20°C to 80°C
