Same model may have multiple batches, images only for reference.

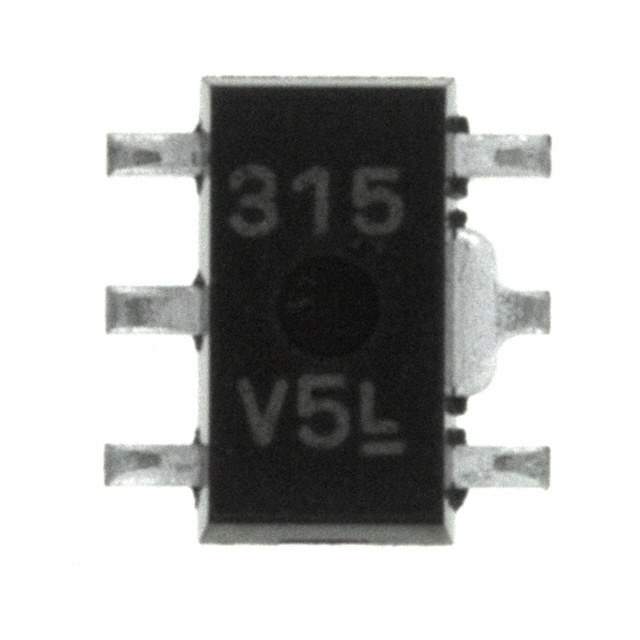

PQ2L3152MSPQ Real Image
Same model may have multiple batches, images only for reference.

PQ2L3152MSPQ

Part No PQ2L3152MSPQ
Manufacturer Sharp Microelectronics
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO 3.3V/1.5V 0.25A SOT89
Datasheet
PQ2L3152MSPQ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Sharp Microelectronics
Packaging Reel - TR
Status Obsolete(EOL)
Output Type Fixed
Number of Regulators 2
Maximum Input Voltage 9V
Nominal Output Voltage (Min/Fixed) 1.5V, 3.3V
Dropout Voltage-Max 1V @ 200mA, 1V @ 200mA
Output Current 250mA, 250mA
Operating Supply Current 400μA
PSRR 60dB (400kHz)
Control Protection Features Over Current, Over Temperature
Temperature Range - Operating -30°C to 80°C
Regulator Topology Positive Fixed
Output Voltage 3.3V, 1.5V
Voltage - Dropout (Typical) 0.16V @ 100mA, 0.24V @ 200mA
Mounting SMD (SMT)
Case / Package SOT-89
Win Source Part Number 062024-PQ2L3152MSPQ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PQ2L3152MSPQ CAD Model

Description

The electronic component with Id 287387 is an integrated circuit manufactured by Sharp Microelectronics.

  • Win Source Part Number: Its Win Source Part Number is 062024-PQ2L3152MSPQ.
  • Type: It is a positive fixed regulator.
  • Dropout Voltage: With a dropout voltage of 0.16V @ 100mA and 0.24V @ 200mA.
  • Regulators: It has two regulators.
  • Output Type: A fixed output type.
  • Nominal Output Voltage: It has a nominal output voltage of 1.5V and 3.3V.
  • Maximum Input Voltage: With a maximum input voltage of 9V.
  • Operating Supply Current: The operating supply current is 400μA.
  • Protection Features: Over current and over temperature.
  • Supply and Demand Status: The supply and demand status is balanced.
