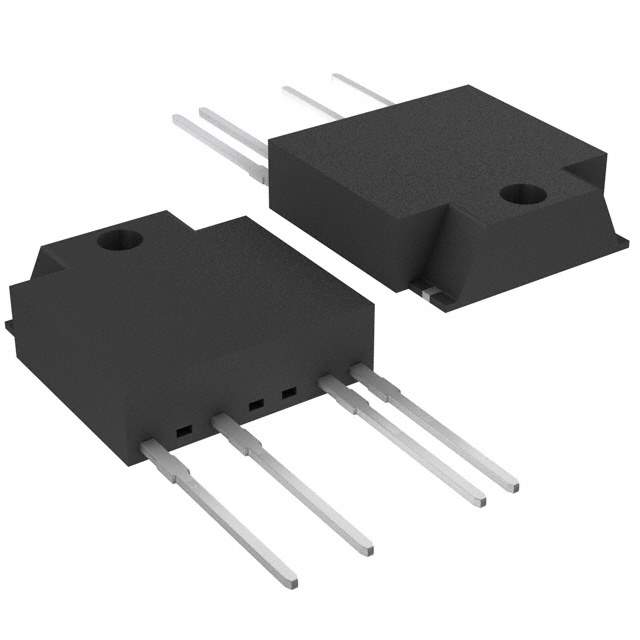

S101N11 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays>Solid State Relays
Mfr Sharp Microelectronics
Series S101
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit SPST-NO (1 Form A)
Output Type AC
Voltage - Input 1.2VDC
Voltage - Load 80 V ~ 120 V
Load Current 1.6 A
Termination Style PC Pin
Package / Case 4-SIP
Supplier Device Package 4-SIP
Other Names 425-1208-5
Standard Package 25
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 1237264-S101N11
Ultra Librarian 3D Model Ultra Librarian S101N11 CAD Model

Description

The Sharp Microelectronics S101 solid state relay is a PC pin termination style relay with through-hole mounting type.

  • Termination Style: PC pin
  • Mounting Type: Through-hole
  • Package: Tube
  • Standard Package: 25
  • Input Voltage: 1.2VDC
  • Output Type: AC
  • Circuit: SPST-NO
  • Load Current: 1.6A
  • Load Voltage: 80V to 120V
  • Supplier Device Package: 4-SIP
  • HTSUS Code: 8536.41.0030
  • Series Status: Obsolete
  • RoHS: Non-compliant
