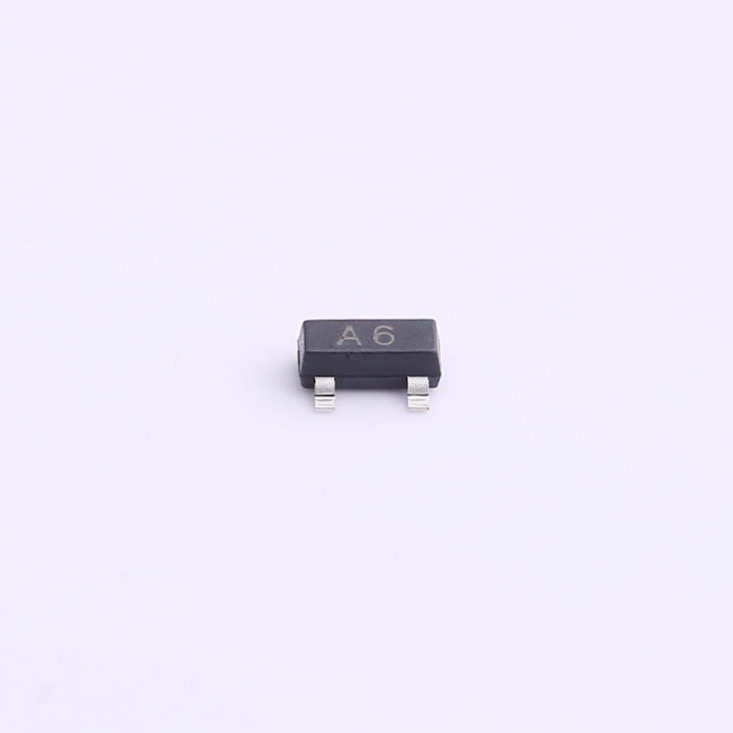

Same model may have multiple batches, images only for reference.
MMBD4148 ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

MMBD4148

Part No MMBD4148
Manufacturer ShenZhen SlkorMicro Semicon Co. Ltd
Catalog Diodes, Rectifiers - Single
Description 100V 1V 4ns 200mA SOT-23
Datasheet
MMBD4148 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1329869-MMBD4148
Package Cut Tape (CT)
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 75V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 1V @ 10mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 4ns
Current - Reverse Leakage @ Vr 5µA @ 75V
Capacitance @ Vr, F 4pF @ 0V, 1MHz
Grade -
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23
Operating Temperature - Junction -55°C ~ 150°C
Package Tape & Reel (TR);Cut Tape (CT)
Current - Average Rectified (Io) 150mA
Voltage - Forward (Vf) (Max) @ If 1.25V @ 150mA
Current - Reverse Leakage @ Vr 2.5µA @ 75V
Capacitance @ Vr, F 2pF @ 0V, 1MHz
Supplier Device Package SOT-23-3
Product Status Obsolete
Voltage - DC Reverse (Vr) (Max) 100V
Operating Temperature - Junction 150°C (Max)
Package Tape & Reel (TR)
Ultra Librarian 3D Model Ultra Librarian MMBD4148 CAD Model
