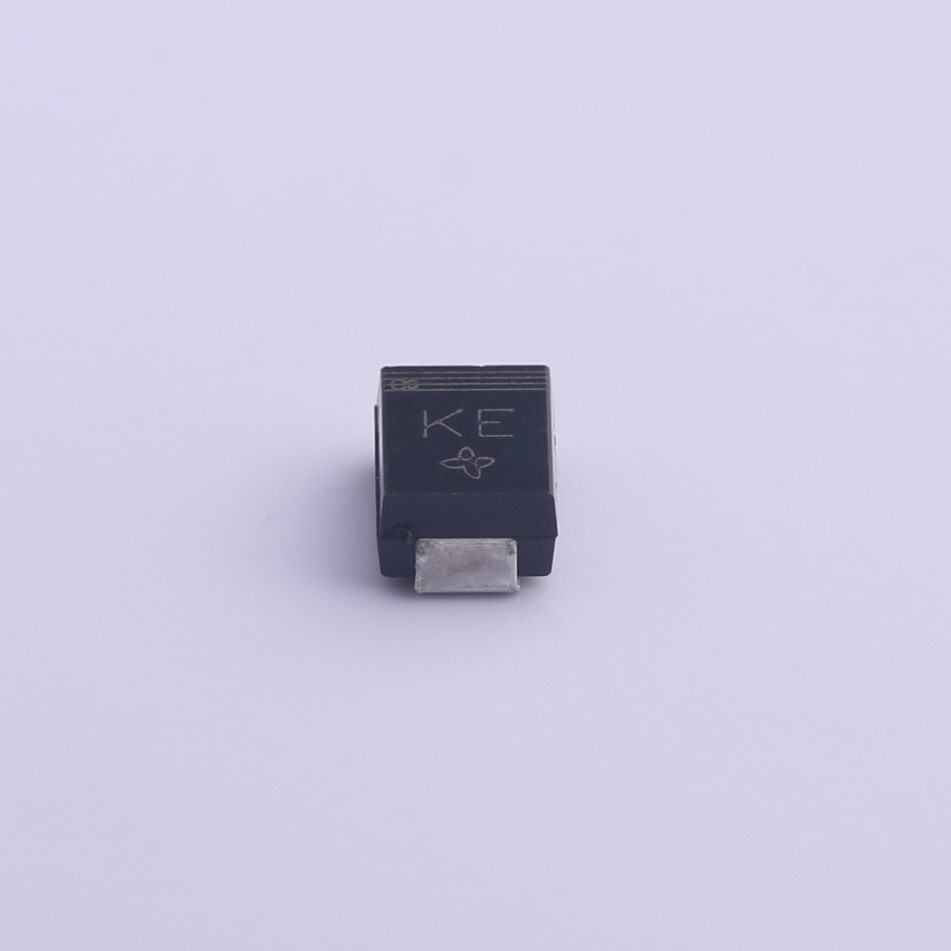

Same model may have multiple batches, images only for reference.
SMBJ5.0A ShenZhen SlkorMicro Semicon Co. Ltd – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

SMBJ5.0A

Part No SMBJ5.0A
Manufacturer ShenZhen SlkorMicro Semicon Co. Ltd
Catalog TVS - Diodes
Description 5V 6.4V 9.2V 65.2A SMB
Datasheet
SMBJ5.0A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1329940-SMBJ5.0A
Package Tape & Reel (TR)
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V
Voltage - Breakdown (Min) 6.4V
Voltage - Clamping (Max) @ Ipp 9.2V
Current - Peak Pulse (10/1000µs) 65.2A
Power - Peak Pulse 600W
Power Line Protection No
Applications Telecom
Operating Temperature -55°C ~ 150°C (TJ)
Grade -
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMB)
Package Tape & Reel (TR);Cut Tape (CT)
Applications General Purpose
Current - Peak Pulse (10/1000µs) 65.3A
Operating Temperature -65°C ~ 150°C (TJ)
Supplier Device Package SMB
Package Strip
Current - Peak Pulse (10/1000µs) 65.22A
Operating Temperature -55°C ~ 150°C
Power Line Protection Yes
Supplier Device Package DO-214AA (SMBJ)
Series *
Current - Peak Pulse (10/1000µs) 68A
Package Cut Tape (CT)
Ultra Librarian 3D Model Ultra Librarian SMBJ5.0A CAD Model
