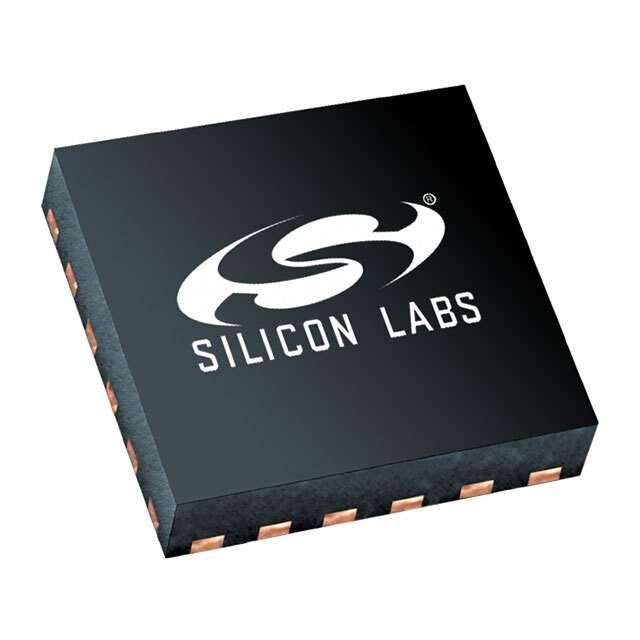

Same model may have multiple batches, images only for reference.

EFM8LB11F32ES0-B-QFN24R

Name: EFM8LB11F32ES0-B-QFN24R
Brand: Silicon Labs
SKU: 1316723
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	EFM8LB11F32ES0-B-QFN24R
Manufacturer	Silicon Labs
Catalog	Embedded - Microcontrollers
Description	IC MCU 8BIT 32KB FLASH 24QFN / CIP-51 8051 Laser Bee Microcontroller IC 8-Bit 72MHz 32KB (32K x 8) FLASH 24-QFN (3x3)
Datasheet	EFM8LB11F32ES0-B-QFN24R Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs)>Embedded>Microcontrollers
Manufacturer	Silicon Labs
Packaging	Reel - TR
Product Status	Obsolete
Core Processor	CIP-51 8051
Core Size	8-Bit
Speed	72MHz
Connectivity	I2C, SMBus, SPI, UART/USART
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Number of I/O	20
Program Memory Size	32KB (32K x 8)
Program Memory Type	FLASH
RAM Size	2.25K x 8
Voltage - Supply (Vcc/Vdd)	2.2V ~ 3.6V
Data Converters	A/D 12x14b; D/A 2x12b
Oscillator Type	Internal
Temperature Range - Operating	-40°C ~ 105°C
Mounting	Surface Mount
Case / Package	24-VFQFN Exposed Pad
Supplier Device Package	24-QFN (3x3)
Base Product Number	EFM8LB11
Moisture Sensitivity Level (MSL)	2 (1 Year)
ECCN	3A991A2
HTSUS	8542.31.0001
Other Part Number	EFM8LB11F32ES0-B-QFN24R-ND,336-4853-6,336-4853-1,336-4853-2
Standard Package	1,500
Win Source Part Number	1316723-EFM8LB11F32ES0-B-QFN24R
Ultra Librarian 3D Model	Ultra Librarian EFM8LB11F32ES0-B-QFN24R CAD Model

Alternative Products

Description

The EFM8LB11F32ES0-B-QFN24R is an embedded microcontroller IC from Silicon Labs, packaged in a 24-VFQFN exposed pad with a supplier device package of 24-QFN (3x3).

Manufacturer: Silicon Labs
Product Name: EFM8LB11F32ES0-B-QFN24R
Core Processor: CIP-51 8051
Speed: 72MHz
Standard Package: 1,500
Mounting Technology: Surface Mount
Core Size: 8-bit
Connectivity: I2C, SMBus, SPI, UART/USART
Peripherals: Brown-out detect/reset, POR, PWM, and WDT
I/O Ports: 20
Program Memory Size: 32KB (32K x 8)
Program Memory Type: FLASH
Temperature Range: -40°C ~ 105°C
ECCN: 3A991A2.31.0001
