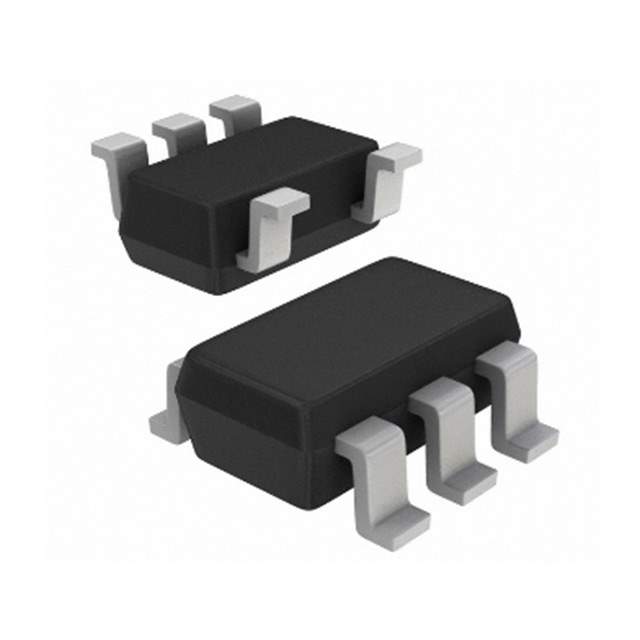

SI7204-B-00-FV Real Image
Same model may have multiple batches, images only for reference.

SI7204-B-00-FV

Part No SI7204-B-00-FV
Manufacturer Silicon Labs
Catalog Magnetic Sensors - Switches (Solid State)
Description MAGNETIC SWITCH LATCH SOT23-5 / Digital Switch Latch Push-Pull Hall Effect SOT-23-5
Datasheet
SI7204-B-00-FV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Magnetic Sensors - Switches (Solid State)
Mfr Silicon Labs
Package Strip
Function Latch
Technology Hall Effect
Polarization North Pole, South Pole
Sensing Range 0.6mT Trip, -0.6mT Release
Test Condition 0°C ~ 70°C
Voltage - Supply 1.7V ~ 3.6V
Current - Supply (Max) 412µA (Typ)
Output Type Push-Pull
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting SMD (SMT)
Supplier Device Package SOT-23-5
Package / Case SC-74A, SOT-753
Base Product Number SI7204
Other Names 336-4053
Standard Package 300
MSL Level 2 (1 Year)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1235176-SI7204-B-00-FV
Ultra Librarian 3D Model Ultra Librarian SI7204-B-00-FV CAD Model

Description

The Silicon Labs SI7204-B-00-FV is a magnetic sensor switch that uses Hall Effect technology.

  • Manufacturer: Silicon Labs
  • Technology: Hall Effect
  • Temperature Range: 0°C to 70°C
  • Sensing Range: 0.6mT trip and -0.6mT release
  • Current Supply: 412μA (Typ)
  • Package: SC-74A, SOT-753 package
  • Category: Sensors, Transducers
