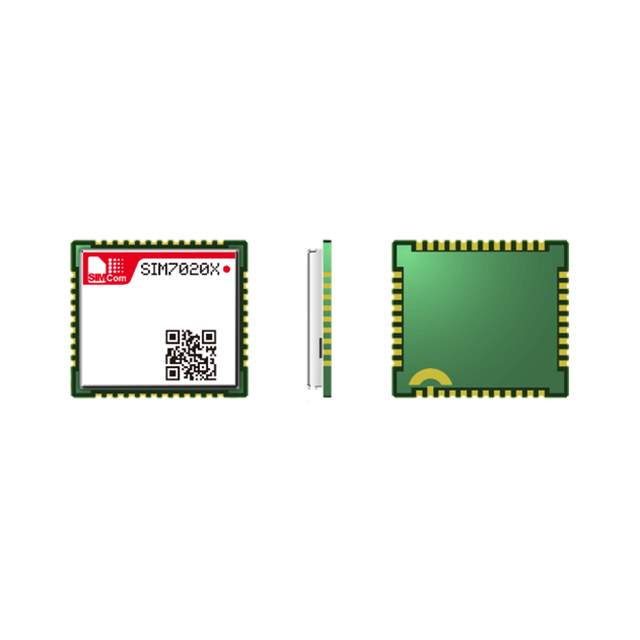

SIM7020G Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr SIMCom Wireless Solutions Limited
Package Tray
RF Family/Standard 802.15.4
Protocol LPWA
Data Rate 150kbps
Serial Interfaces ADC, UART, USB
Antenna Type Antenna Not Included
Voltage - Supply 2.1V ~ 3.6V
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 42-SMD Module
MSL Level 3 (168 Hours)
ECCN 7A994
HTSUS 8517.62.0090
Other Names 3781-SIM7020G,S2-10985,S2-10985-Z30AY
Standard Package 1,000
Win Source Part Number 1208621-SIM7020G
Ultra Librarian 3D Model Ultra Librarian SIM7020G CAD Model

Description

The SIM7020G RF transceiver module is an 802.15.4 standard module with LPWA protocol.

  • Data Rate: 150kbps
  • Voltage Supply: 2.1V to 3.6V
  • Package: Tray
  • Mounting: SMD (SMT)
  • Temperature Range: -40°C to 85°C
  • ECCN: 7A994
  • Manufacturer: SIMCom Wireless Solutions Limited
